Switch - desktop
| Main Specifications | |
|---|---|

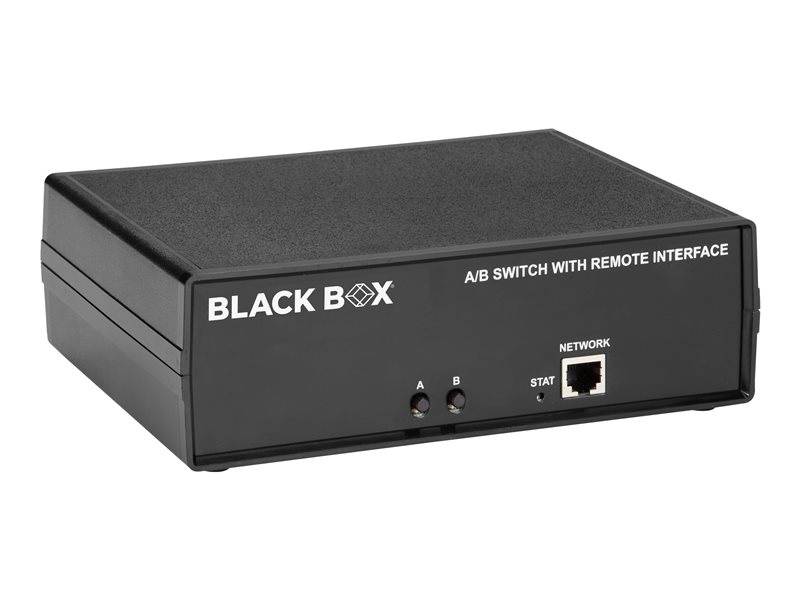

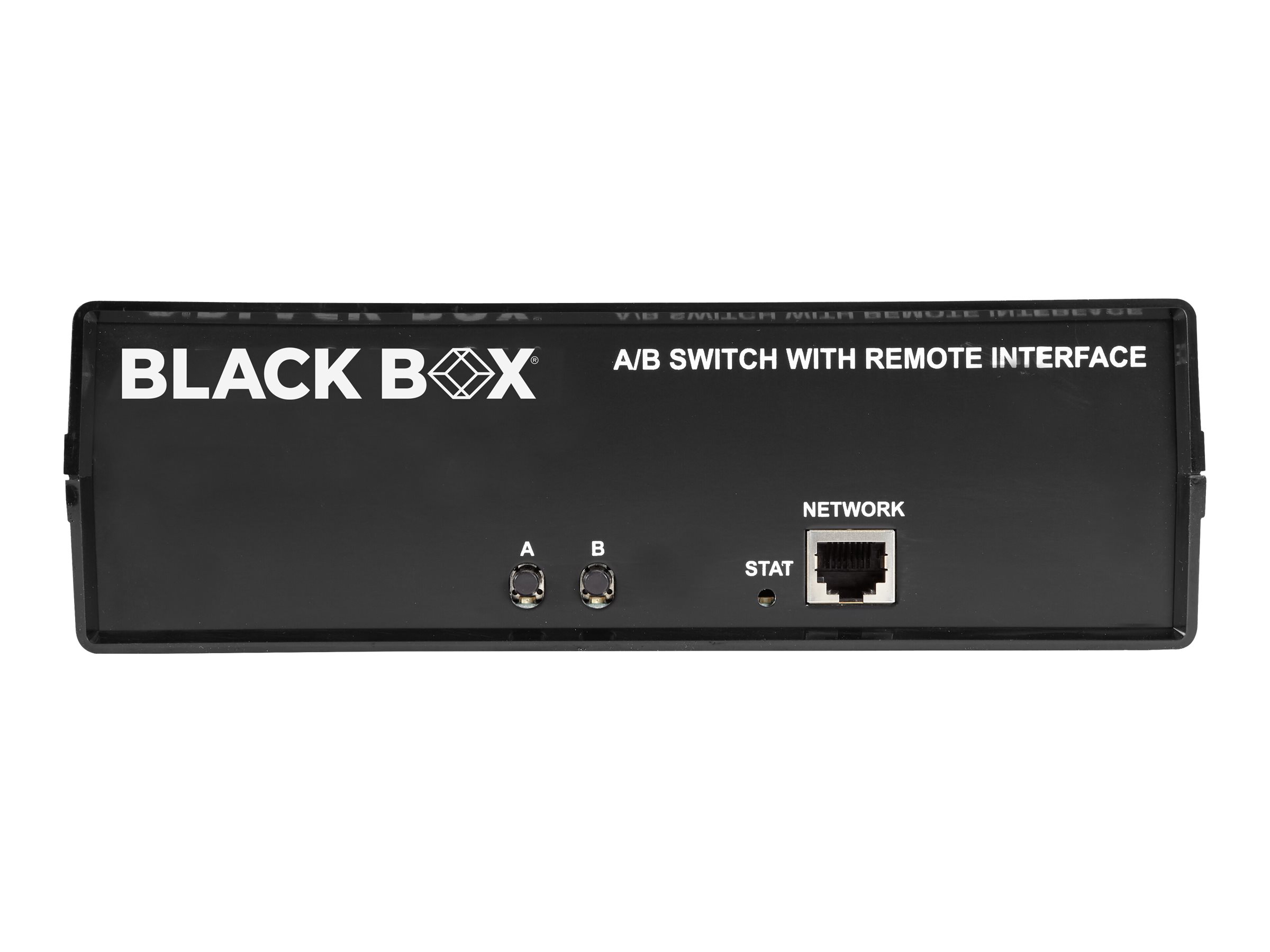

| Product Description | Black Box Remotely Controlled Layer 1 A/B Switch DB9, 1 x 2 - switch |
| Device Type | Switch |
| Subtype | Serial |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 6.3 in x 6.3 in x 2.5 in |
| Weight | 3.97 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch |
| Enclosure Type | Desktop |
| Subtype | Serial |
| Status Indicators | Status |
| Expansion / Connectivity | |

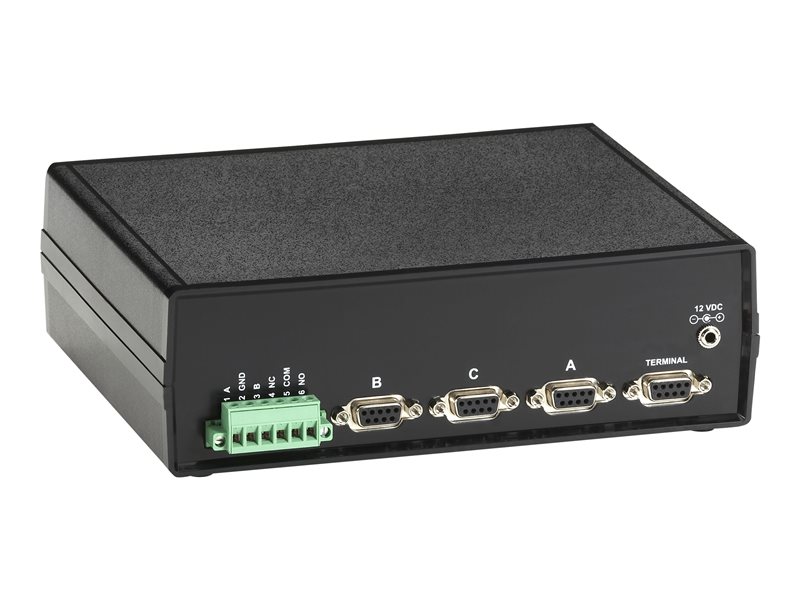

| Interfaces | 3 x serial (RS-232) DB-9 ¦ 1 x management (RS-232) DB-9 ¦ Remote control: 1 x 6 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 2.5 in |
| Weight | 3.97 lbs |
