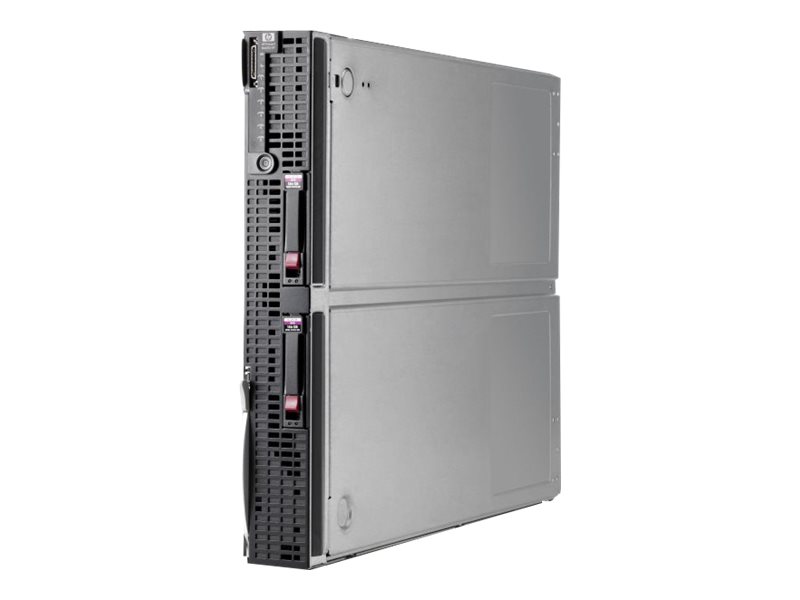

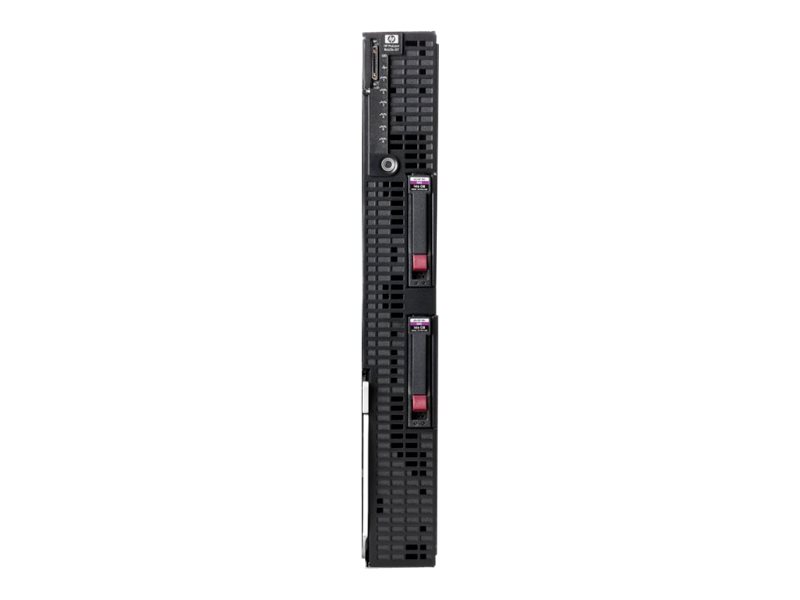

Server - blade 2-way - 1 x Xeon E7-2830 / up to 2.4 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - ATI ES1000 - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant BL620C G7 - blade Xeon E7-2830 2.13 GHz - 32 GB - no HDD |
| Type | Server - blade - administrator password, power-on password, keyboard password, USB port control |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E7-2830 / 2.13 GHz (up to 2.4 GHz, (8-core) |
| Processor Main Features | Intel QuickPath Interconnect |
| Cache Memory | 24 MB L3 cache |
| Cache Per Processor | 24 MB |
| RAM | 32 GB (installed) / 512 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | SAS-2 (SATA 3Gb/s / SAS 6Gb/s) - PCIe 2.0 x4 (Smart Array P410i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ATI ES1000 |
| Networking | 1GbE, 10GbE |
| Dimensions (WxDxH) | 2.2 in x 20.1 in x 14.4 in |
| Weight | 17.86 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 1 (free) x CPU ¦ 32 (total) / 28 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x microSDHC Card ¦ 3 (total) / 3 (free) x expansion slot |
| Interfaces | 1 x HPE iLO ¦ 4 x LAN (10Gigabit Ethernet) ¦ 1 x display / video ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, USB port control |
| Compliant Standards | ACPI 2.0, WEEE |
| RAM | |
| Installed Size | 32 GB (installed) / 512 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1066 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 32 (total) / 28 (empty) |
| Features | Registered |
| Configuration Features | 4 x 8 GB |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ethernet Ports | 4 x 10 Gigabit Ethernet |
| Ethernet Controller | HP NC553i |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 3 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS-2 - integrated - PCIe 2.0 x4 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Operating System / Software | |
| OS Certified | SunSoft Solaris, SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 20.1 in |
| Height | 14.4 in |
| Weight | 17.86 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E7-2830 |
| Clock Speed | 2.13 GHz |
| Max Turbo Speed | 2.4 GHz |
| Number of Cores | 8-core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel QuickPath Interconnect |
| Chipset Type | Intel 7500 |
