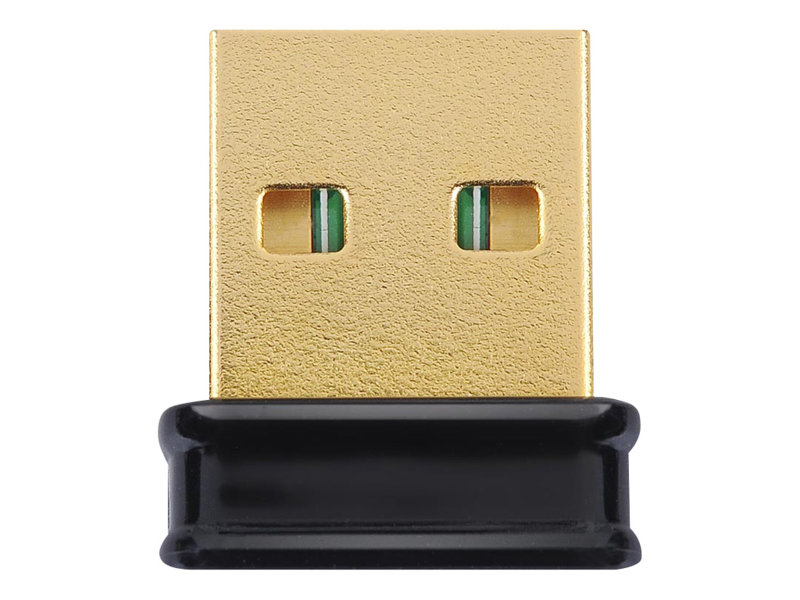

Network adapter - USB 2.0 - 802.11b/g/n
| Main Specifications | |
|---|---|
| Product Description | Edimax EW-7811Un - network adapter - USB 2.0 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Dimensions (WxDxH) | 0.6 in x 0.7 in x 0.3 in |
| Data Link Protocol | 802.11b/g/n |
| Data Transfer Rate | 150 Mbps |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, USB 1.1, USB 2.0, IEEE 802.11n, Wi-Fi Protected Setup |
| System Requirements | Microsoft Windows Vista / XP / 7 |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type A |
| Miscellaneous | |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate | 150 Mbps |
| Frequency Band | 2.4 GHz |
| Status Indicators | Link OK, link/activity |
| Features | WMM support, QoS, WPS, Green WLAN |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, USB 1.1, USB 2.0, IEEE 802.11n, Wi-Fi Protected Setup |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, EZmax Setup Wizard |
| OS Required | Microsoft Windows Vista / XP / 7 |
| Additional Requirements | USB port (compatible with 2.0 specification) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 0.7 in |
| Height | 0.3 in |
| Antenna | |
| Antenna | Internal |
