Server - blade - 2-way - 1 x Xeon X5675 / 3.06 GHz - RAM 12 GB - no HDD - MGA G200 - GigE, 10 GigE - monitor: none - Windows Server 2008 R2 Certified
| Main Specifications | |
|---|---|

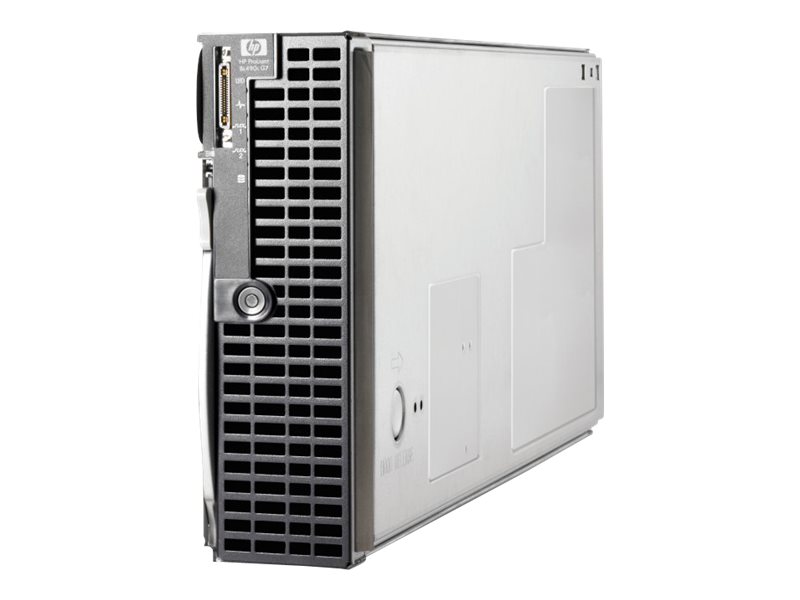

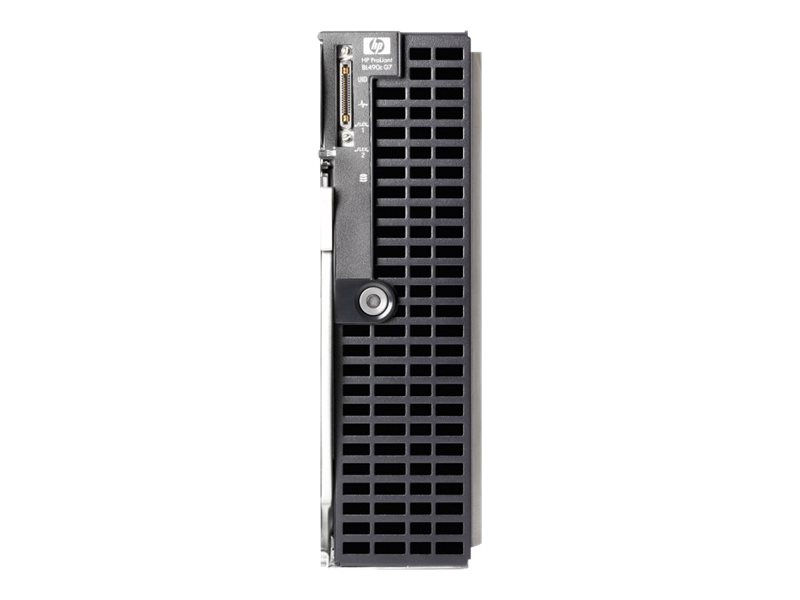

| Product Description | HPE ProLiant BL490c G7 - blade - Xeon X5675 3.06 GHz - 12 GB - no HDD |
| Type | Server - blade - administrator password, power-on password, keyboard password, serial port I/O control |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon X5675 / 3.06 GHz (3.46 GHz) (6-core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 12 GB (installed) / 288 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | SATA (SATA 3Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox MGA G200 |
| Networking | GigE, 10 GigE |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Dimensions (WxDxH) | 2.2 in x 20.1 in x 7.2 in |
| Weight | 10.8 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal |
| Slots | 2 (total) / 1 (free) x CPU ¦ 18 (total) / 15 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x expansion slot (x8 mode) ¦ 1 (total) / 1 (free) x SD card |
| Interfaces | 1 x HPE iLO ¦ 2 x LAN (10Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, serial port I/O control |
| Compliant Standards | ACPI 2.0, WEEE |
| RAM | |
| Installed Size | 12 GB / 288 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 15 (empty) |
| Features | Registered |
| Configuration Features | 3 x 4 GB |
| RAM Supported | PC3-10600 - 288 GB registered ¦ PC3-10600 - 48 GB unbuffered - ECC ¦ PC3-8500 - 384 GB registered |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | HP NC553i |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 3 |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA 3Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Matrox MGA G200 |
| Operating System / Software | |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| OS Certified | SunSoft Solaris, SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 20.1 in |
| Height | 7.2 in |
| Weight | 10.8 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon X5675 |
| Clock Speed | 3.06 GHz |
| Max Turbo Speed | 3.46 GHz |
| Number of Cores | 6-core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Chipset Type | Intel 5520 |
