Server - blade - 4-way - 4 x Opteron 6176 / 2.3 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - no HDD - ATI ES1000 - GigE, 10 GigE - monitor: none - Windows Server 2008 R2 Certified
| Main Specifications | |
|---|---|

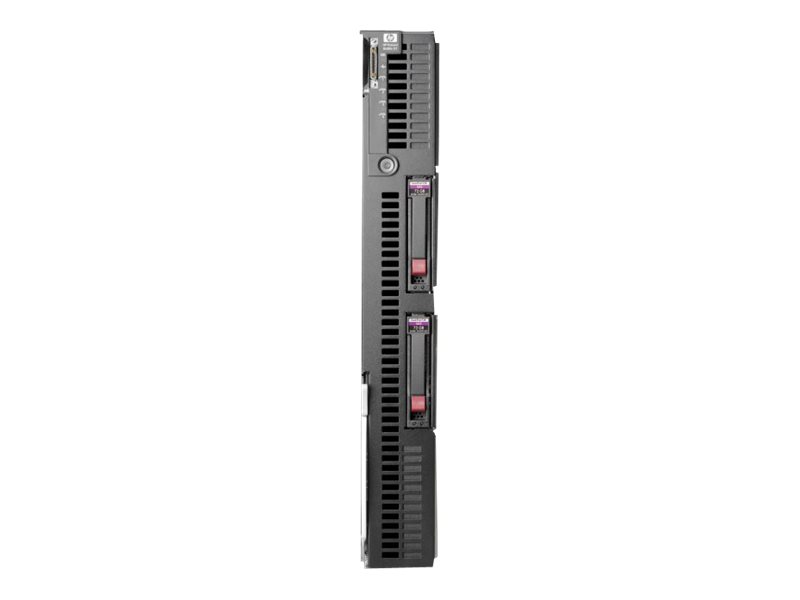

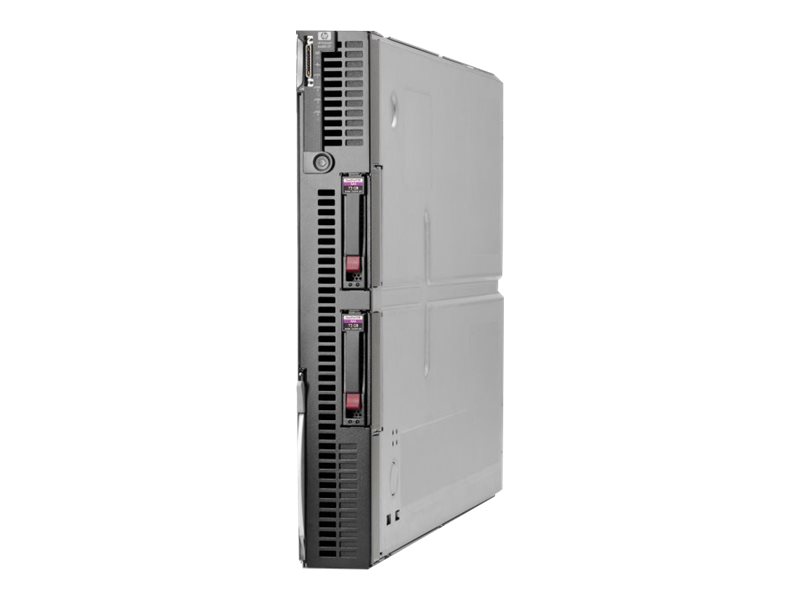

| Product Description | HPE ProLiant BL685c G7 - blade - Opteron 6176 2.3 GHz - 64 GB - no HDD |
| Type | Server - blade - administrator password, power-on password, keyboard password, serial port I/O control |
| Server Scalability | 4-way |
| Processor | 4 x AMD Opteron 6176 / 2.3 GHz (12-core) |
| Cache Memory | 48 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 64 GB (installed) / 256 GB (max) - DDR3 SDRAM - Advanced ECC - PC3-10600 |
| Storage Controller | SAS-2 (SATA 3Gb/s / SAS 6Gb/s) - PCIe 2.0 x4 (Smart Array P410i with 1GB FBWC) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ATI ES1000 |
| Networking | GigE, 10 GigE |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Dimensions (WxDxH) | 2.2 in x 20.1 in x 14.4 in |
| Weight | 19.18 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Blade |
| Server Scalability | 4-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 4 (total) / 0 (free) x CPU ¦ 32 (total) / 16 (free) x DIMM 240-pin ¦ 3 (total) / 3 (free) x expansion slot ¦ 1 (total) / 1 (free) x microSD Card |
| Interfaces | 1 x HPE iLO ¦ 4 x LAN (10Gigabit Ethernet) ¦ 1 x display / video |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, serial port I/O control |
| Compliant Standards | ACPI 2.0, WEEE |
| RAM | |
| Installed Size | 64 GB / 256 GB (max) |
| Technology | DDR3 SDRAM - Advanced ECC |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 32 (total) / 16 (empty) |
| Features | Registered |
| Configuration Features | 16 x 4 GB |
| RAM Supported | PC3-10600 - 256 GB registered - Advanced ECC ¦ PC3-8500 - 512 GB registered - Advanced ECC |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Ethernet Ports | 4 x 10 Gigabit Ethernet |
| Ethernet Controller | 2 x HP NC551i |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 3 |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS-2 - integrated - PCIe 2.0 x4 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i with 1GB FBWC |
| RAID Level | RAID 0, RAID 1 |
| Buffer Size | 1 GB |
| Cache Memory | |
| Installed Size | L3 cache - 48 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Operating System / Software | |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 20.1 in |
| Height | 14.4 in |
| Weight | 19.18 lbs |
| Processor / Chipset | |
| CPU | AMD Opteron 6176 |
| Clock Speed | 2.3 GHz |
| Number of Cores | 12-core |
| 64-bit Computing | Yes |
| CPU Qty | 4 |
| Max CPU Qty | 4 |
| L2 cache | 512 KB |
| CPU Upgradability | Upgradable |
| Chipset Type | AMD SR5690/SP5100 |
