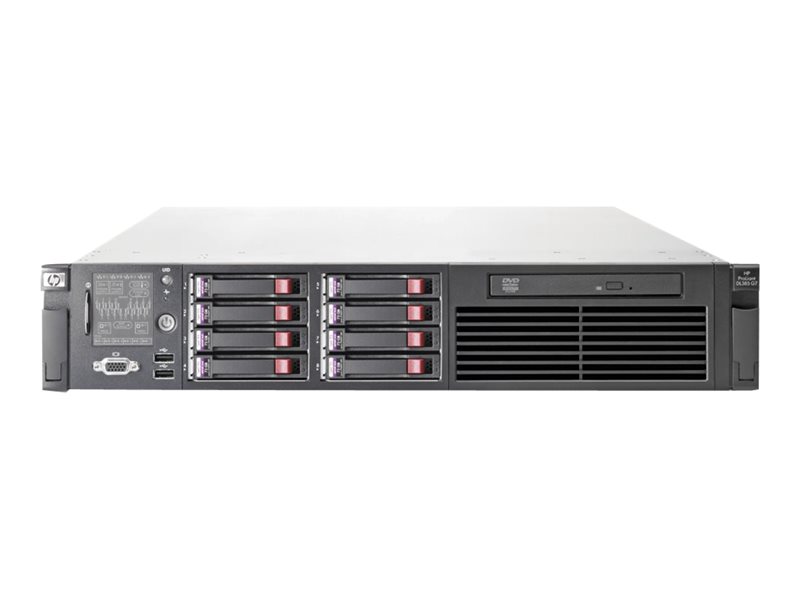

Server - rack-mountable - 2U - 2-way - 1 x Opteron 6132 HE / 2.2 GHz - RAM 4 GB - SAS - hot-swap 2.5" bay(s) - no HDD - ATI ES1000 - GigE - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL385 G7 HE - rack-mountable - Opteron 6132 HE 2.2 GHz - 4 GB - no HDD |
| Type | Server - rack-mountable - administrator password, power-on password, keyboard password, serial port I/O control, QuickLock |
| Height (Rack Units) | 2U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x AMD Opteron 6132 HE / 2.2 GHz (8-core) |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 4 GB (installed) / 64 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | RAID (SATA 3Gb/s / SAS 6Gb/s) - PCIe x8 (Smart Array P410i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Graphics Controller | ATI ES1000 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 27.6 in x 3.4 in |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 2.0 x16 - full-length, full-height (x8 mode) ¦ 2 (total) / 2 (free) x PCIe 2.0 x8 - half-length, full-height (x4 mode) ¦ 18 (total) / 16 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU |
| Interfaces | 1 x serial ¦ 1 x PS/2 mouse ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x PS/2 keyboard ¦ 4 x LAN (Gigabit Ethernet) ¦ 4 x USB (2 front, 2 rear) ¦ 1 x HPE iLO ¦ 1 x display / video |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, serial port I/O control, QuickLock |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 4 GB / 64 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 16 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 2 GB |
| RAM Supported | PC3-10600 - 256 GB registered ¦ PC3-10600 - 64 GB unbuffered |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x4 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | 2 x HP NC382i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 3 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Device Type | Power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 460 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - plug-in card - PCIe x8 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 27.6 in |
| Height | 3.4 in |
| Processor / Chipset | |
| CPU | AMD Opteron 6132 HE |
| Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | AMD SR5690/SP5100 |
