Server - tower - 5U - 2-way - 1 x Xeon E5606 / 2.13 GHz - RAM 4 GB - SAS - hot-swap 3.5" bay(s) - no HDD - DVD - GigE - monitor: none
| Main Specifications | |
|---|---|

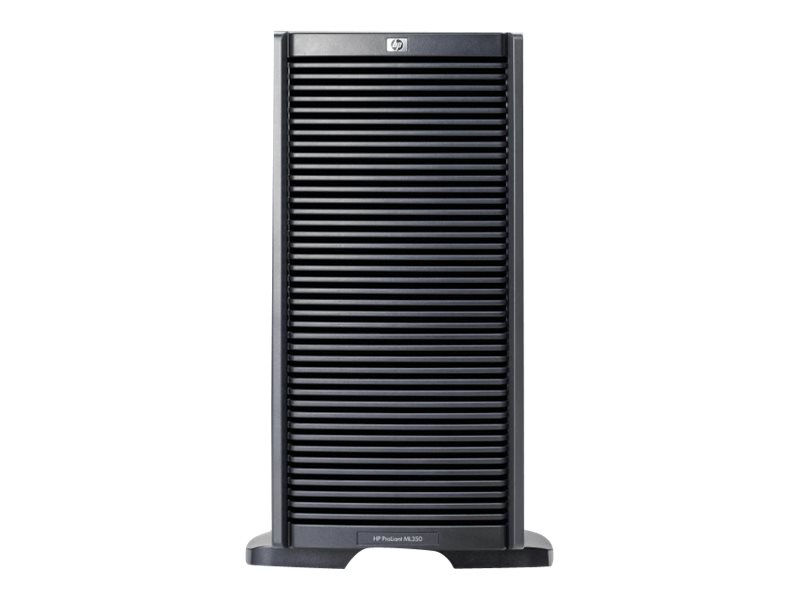

| Product Description | HPE ProLiant ML350 G6 Entry - tower - Xeon E5606 2.13 GHz - 4 GB - no HDD |
| Type | Server - tower - system password, power-on password, disk configuration lock, diskette I/O control, parallel port I/O control, serial port I/O control |
| Height (Rack Units) | 5U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5606 / 2.13 GHz (Quad-Core) |
| Cache Memory | 8 MB L3 cache |
| Cache Per Processor | 8 MB |
| RAM | 4 GB (installed) / 192 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | RAID (SATA 1.5Gb/s / SAS) - PCIe x4 (Smart Array P410i) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | DVD |
| Video Memory | 64 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Software Included | Drivers & Utilities |
| Dimensions (WxDxH) | 8.6 in x 23.5 in x 18.5 in |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Tower - 5U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 5 |
| Hot-Swap Bays Qty | 6 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 5 (total) / 4 (free) x external 5.25" x 1/2H ¦ 6 (total) / 6 (free) x hot-swap 3.5" x 1/3H |
| Slots | 1 (total) / 1 (free) x PCIe 2.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x8 mode) ¦ 4 (total) / 3 (free) x PCIe 2.0 x8 (x4 mode) ¦ 18 (total) / 17 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU |
| Interfaces | 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 4 x USB 2.0 (2 front, 2 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Features | System password, power-on password, disk configuration lock, diskette I/O control, parallel port I/O control, serial port I/O control |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 4 GB / 192 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 17 (empty) |
| Features | Registered |
| Configuration Features | 1 x 4 GB |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x4 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC326i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 2 Standard |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 460 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - plug-in card - PCIe x4 |
| Controller Interface Type | SATA 1.5Gb/s / SAS |
| Storage Controller Name | Smart Array P410i |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | DVD-ROM DVD - SATA |
| Read Speed | 16x |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Video Memory | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Red Hat Linux, SuSe Linux, SCO OpenServer 5.0.7, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, UnixWare 7.1.3, Novell NetWare 6.5, Microsoft Windows Small Business Server 2003, UnixWare 7.1.4, Novell Open Enterprise Server, Microsoft Windows Server 2003 R2 Enterprise Edition, Microsoft Windows Server 2003 R2 Standard Edition |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 23.5 in |
| Height | 18.5 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5606 |
| Clock Speed | 2.13 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel 5520 |
