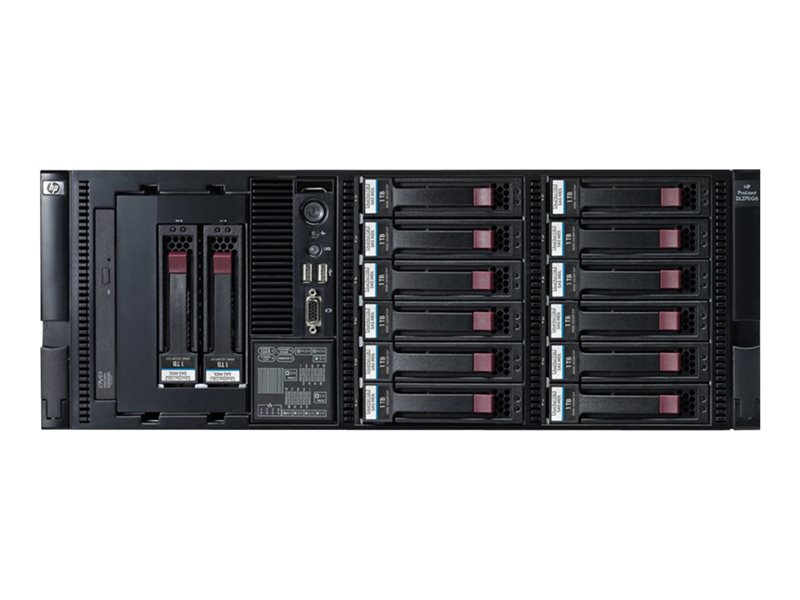

Server - rack-mountable - 4U - 2-way - 1 x Xeon E5645 / 2.4 GHz - RAM 6 GB - SAS - hot-swap 2.5" bay(s) - no HDD - DVD - GigE - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL370 G6 Base - rack-mountable - Xeon E5645 2.4 GHz - 6 GB - no HDD |
| Type | Server - rack-mountable - administrator password, power-on password, keyboard password, disk configuration lock, diskette I/O control, parallel port I/O control, serial port I/O control, QuickLock |
| Height (Rack Units) | 4U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5645 / 2.4 GHz (2.67 GHz) (6-core) |
| Processor Socket | LGA1366 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 6 GB (installed) / 384 GB (max) - DDR3 SDRAM - ECC - PC3-10600 |
| Storage Controller | RAID (SATA 1.5Gb/s / SAS) - PCIe (Smart Array P410i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | DVD |
| Video Memory | 64 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Software Included | Drivers & Utilities |
| Dimensions (WxDxH) | 19 in x 27.5 in x 6.9 in |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 0 (free) x PCIe x8 (x4 mode) ¦ 5 (total) / 5 (free) x PCIe 2.0 x8 (x8 mode) ¦ 18 (total) / 15 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x8 mode) ¦ 2 (total) / 2 (free) x PCIe 2.0 x16 (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 (x8 mode) |
| Interfaces | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 2 x VGA (1 in front) ¦ 5 x USB (2 front, 2 rear, 1 internal) ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, disk configuration lock, diskette I/O control, parallel port I/O control, serial port I/O control, QuickLock |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 6 GB / 384 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 15 (empty) |
| Features | Registered |
| Configuration Features | 3 x 2 GB |
| RAM Supported | PC3-10600 - 384 GB registered - ECC ¦ PC3-10600 - 48 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HP NC375i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - plug-in card - PCIe |
| Controller Interface Type | SATA 1.5Gb/s / SAS |
| Storage Controller Name | Smart Array P410i |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Buffer Size | 512 MB |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | DVD-ROM DVD - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Video Memory | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SCO OpenServer, UnixWare, Novell NetWare, Microsoft Windows 2000 Server, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, SunSoft Solaris 10, UnitedLinux |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 27.5 in |
| Height | 6.9 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5645 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 2.67 GHz |
| Number of Cores | 6-core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| CPU Socket | LGA1366 Socket |
| Chipset Type | Intel 5520 |
