Wireless router 4-port switch 2.4 GHz
| Main Specifications | |
|---|---|

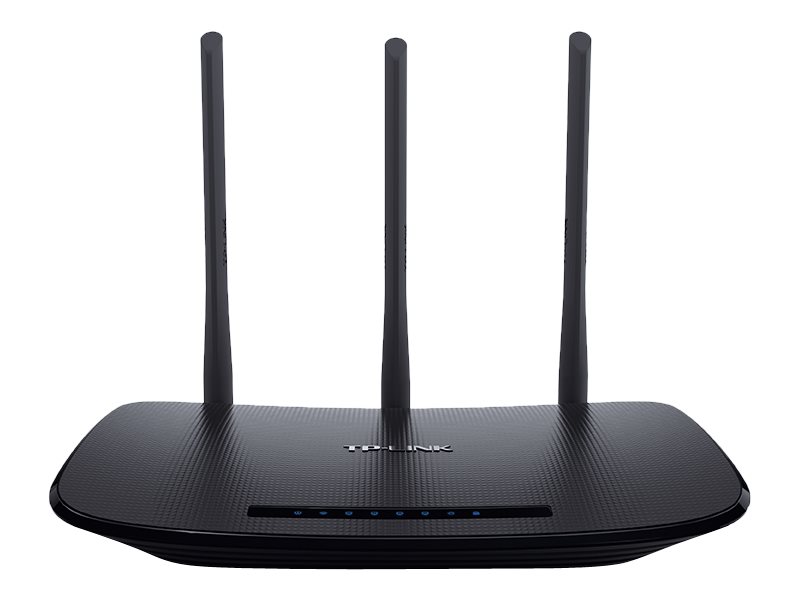

| Product Description | TP-Link TL-WR940N - wireless router - Wi-Fi - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | TCP/IP, ICMP/IP, PPPoE |
| Routing Protocol | Static IP routing |
| Features | Firewall protection, DMZ port, DHCP support, NAT support, auto-negotiation, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, SNTP support, MIMO technology, virtual server support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dimensions (WxDxH) | 7.9 in x 5.5 in x 1.1 in |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | TCP/IP, ICMP/IP, PPPoE |
| Routing Protocol | Static IP routing |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Features | Firewall protection, DMZ port, DHCP support, NAT support, auto-negotiation, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, SNTP support, MIMO technology, virtual server support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, FCC |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |

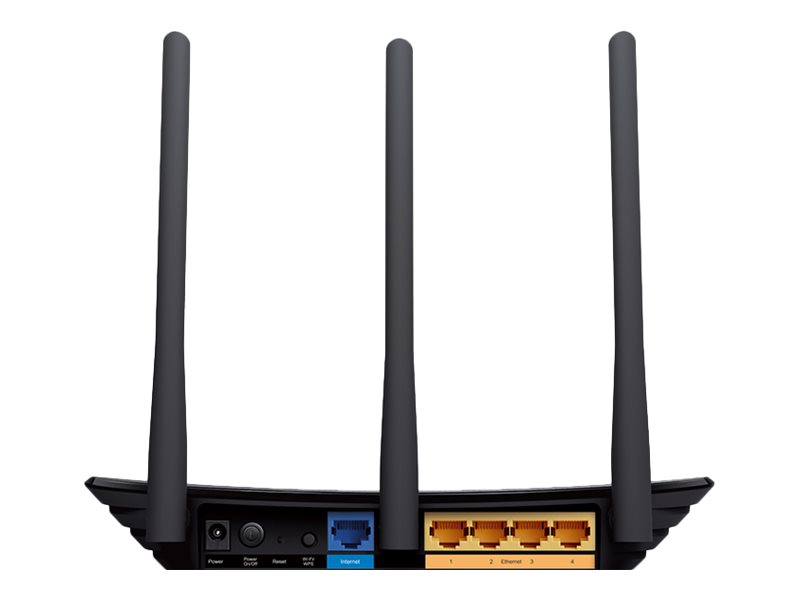

| Interfaces | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 5.5 in |
| Height | 1.1 in |
| Antenna | |
| Antenna | External integrated |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 3 dBi |
| Line Properties | |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 16 QAM, OFDM |
