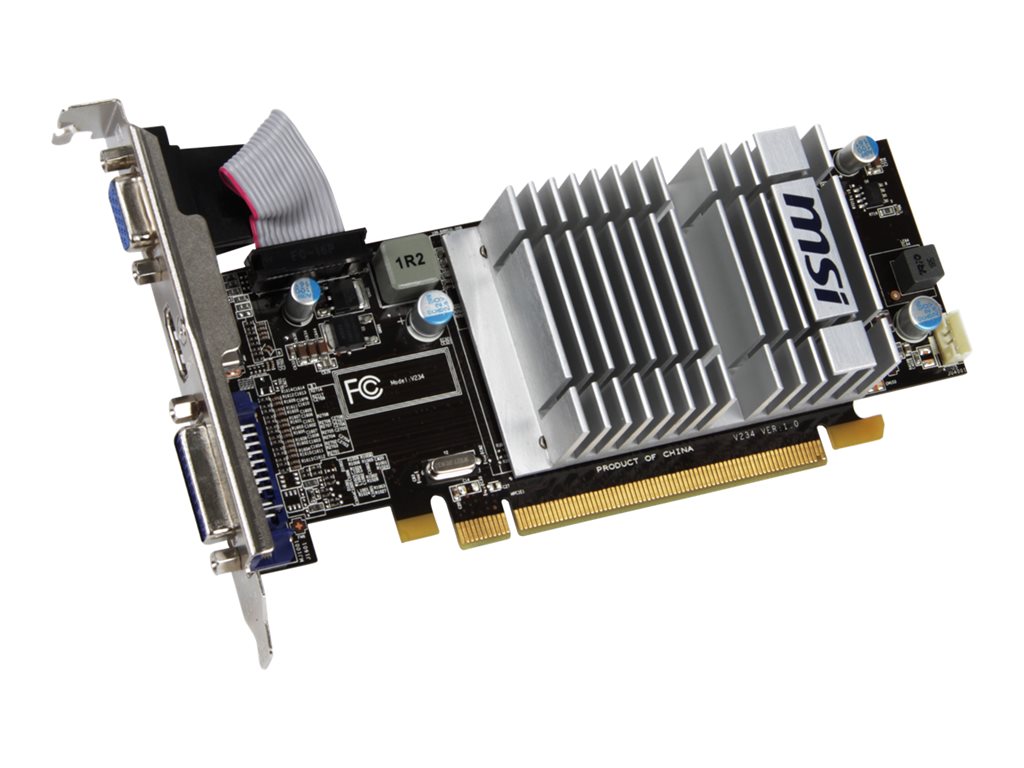

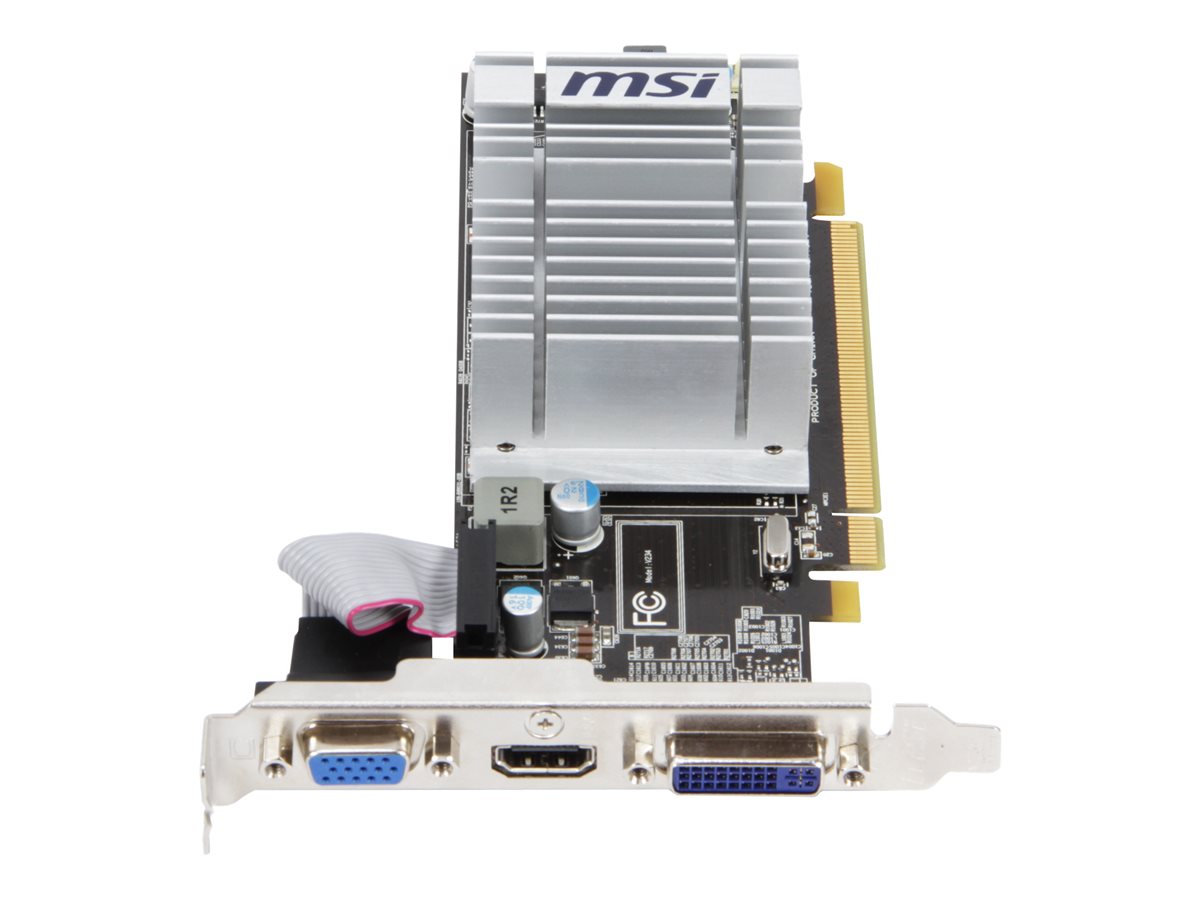

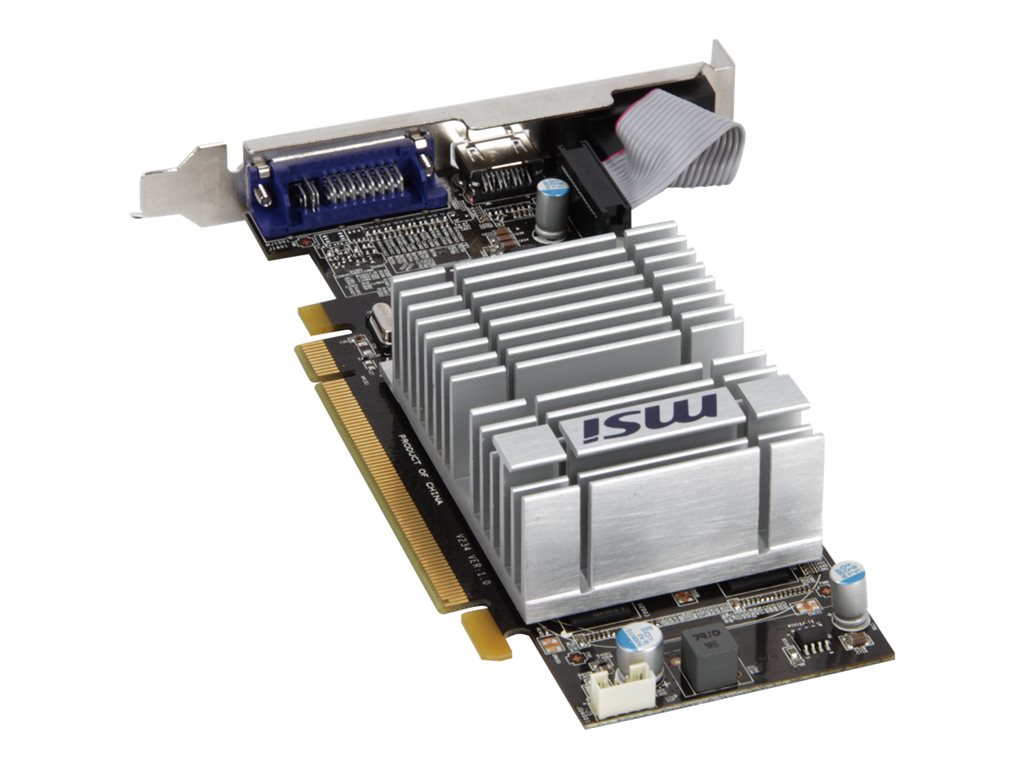

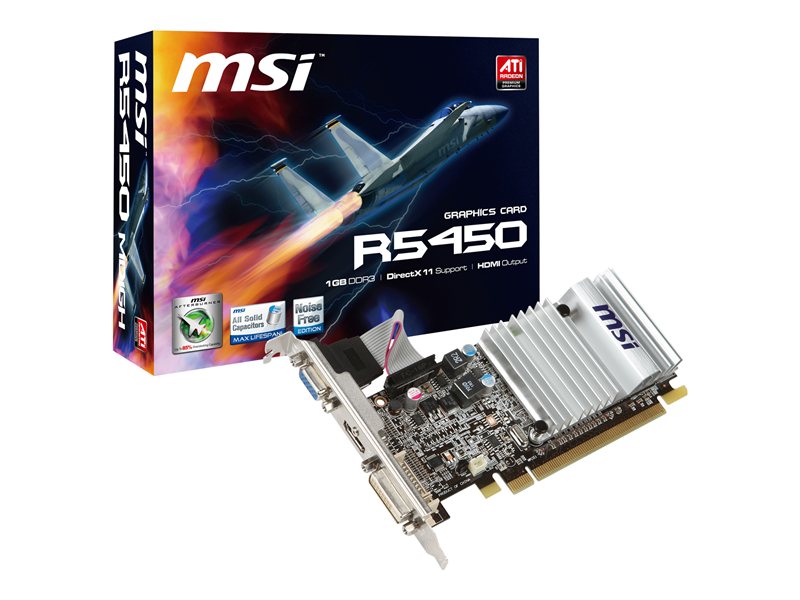

Graphics card - Radeon HD 5450 - 1 GB DDR3 - PCIe 2.1 x16 low profile - DVI, D-Sub, HDMI - fanless
| Main Specifications | |
|---|---|
| Product Description | MSI R5450-MD1GD3H/LP - graphics card - Radeon HD 5450 - 1 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 2.1 x16 |
| Graphics Engine | ATI Radeon HD 5450 |
| Memory | 1 GB DDR3 |
| Core Clock | 400 MHz |
| Stream Processors | 80 |
| Effective Memory Clock | 1.334 GHz |
| RAMDAC | 400 MHz |
| Memory Interface | 64-bit |
| Max Resolution | 2560 x 1600 |

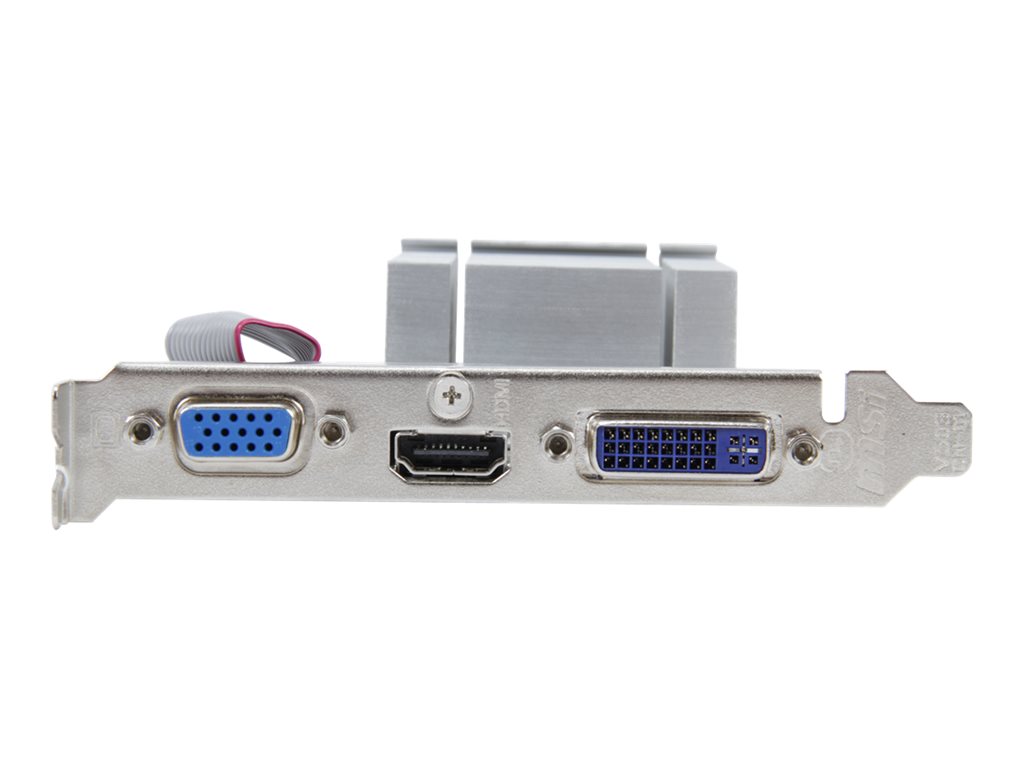

| Interfaces Details | DVI-D (dual link) ¦ VGA ¦ HDMI |
| API Supported | DirectX 11, OpenGL 3.2 |
| Fanless | Yes |
| Dimensions (WxDxH) | 0.8 in x 5.7 in x 2.7 in |
| Microsoft Certification | Compatible with Windows 7 |
| General | |
| Device Type | Graphics card - low profile - fanless |
| Bus Type | PCI Express 2.1 x16 |
| Graphics Engine | ATI Radeon HD 5450 |
| Core Clock | 400 MHz |
| Stream Processors | 80 |
| RAMDAC | 400 MHz |
| Max Resolution | 2560 x 1600 |
| Interfaces Details | DVI-D (dual link) ¦ VGA ¦ HDMI |
| API Supported | DirectX 11, OpenGL 3.2 |
| Features | MSI Solid Capacitor, Avivo HD Technology, ATI CrossFireX Technology, ATI PowerPlay technology, Military Class Components, AMD Stream technology, HDCP |
| Memory | |
| Size | 1 GB |
| Technology | DDR3 SDRAM |
| Effective Clock Speed | 1.334 GHz |
| Bus Width | 64-bit |
| Miscellaneous | |
| Power Consumption Operational | 19.4 Watt |
| Software Included | Drivers & Utilities, Adobe Acrobat Reader, MSI Live Update Series, Microsoft DirectX, MSI Live, MSI Afterburner, MSI StarOSD, MSI Dual Core Center, Norton Internet Security 2008 (60 days trial), MSI Live Update 5 |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | RoHS |
| Width | 0.8 in |
| Depth | 5.7 in |
| Height | 2.7 in |
