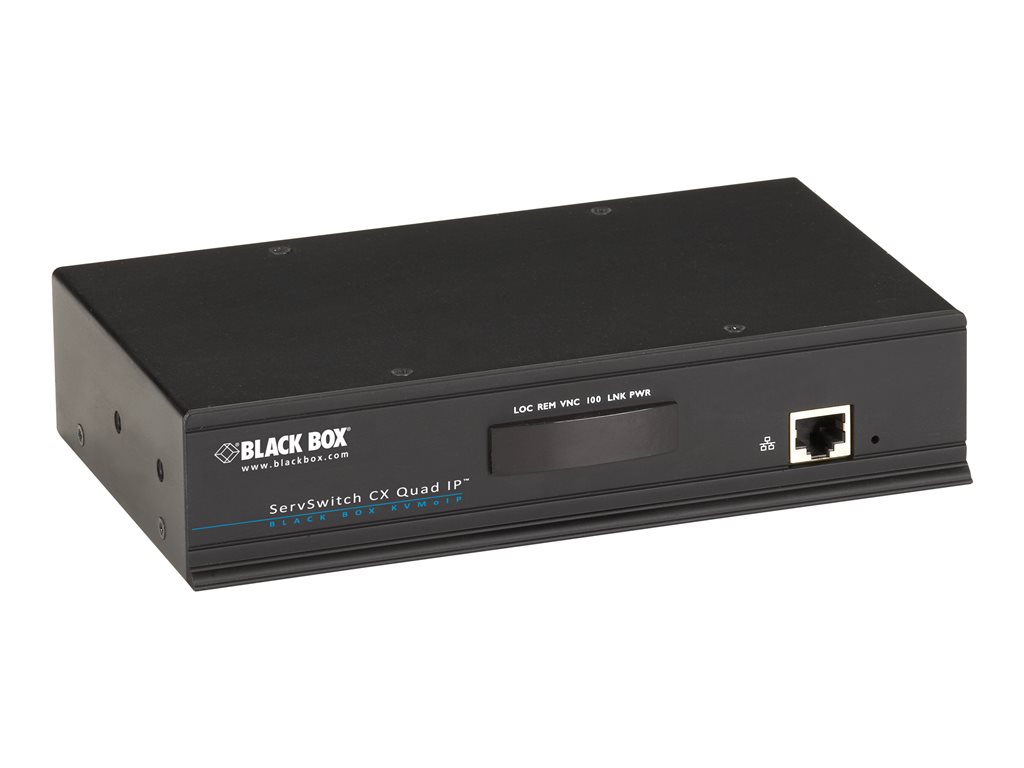

KVM switch - CAT5 - 16 x KVM port(s) - 1 local user - 4 IP users - desktop
| Main Specifications | |
|---|---|
| Product Description | Black Box ServSwitch CX Quad IP - KVM switch - 16 ports |
| Device Type | KVM switch - 16 ports - CAT5 |
| Enclosure Type | 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Users Qty | 1 local user, 4 IP users |
| Features | Firmware upgradable |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 5.1 in x 1.7 in x 7.9 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM switch - 16 ports |
| Enclosure Type | Desktop 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 4 IP users |
| Server Connection Via Twisted Pair | CAT5 |
| Local User Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1600 x 1200 |
| Features | Firmware upgradable |
| Expansion / Connectivity | |

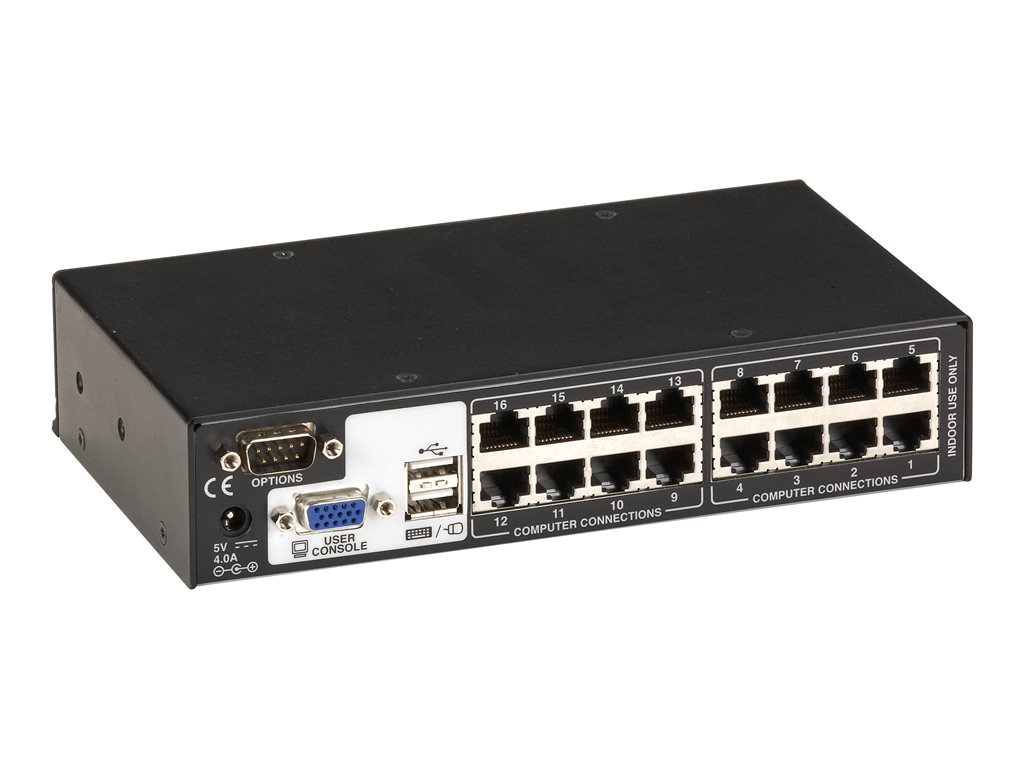

| Interfaces | 16 x KVM RJ-45 ¦ 1 x serial (RS-232) DB-9 ¦ 1 x LAN RJ-45 ¦ 1 x keyboard (USB) Type A ¦ 1 x VGA HD-15 ¦ 2 x mouse (USB) Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 1.7 in |
| Height | 7.9 in |
