Modular expansion base
| Main Specifications | |
|---|---|

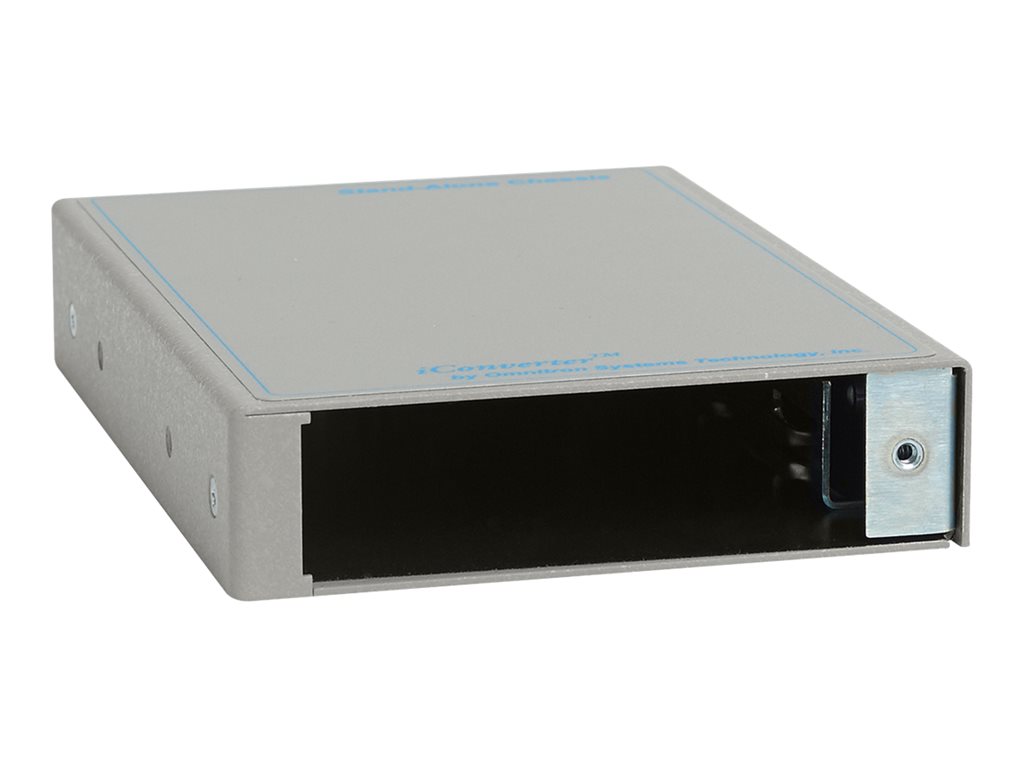

| Product Description | Omnitron iConverter 1-Module Power Chassis - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | External |
| Power | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 3.6 in x 6 in x 1 in |
| Weight | 1.5 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Installed Modules Qty (Max) | 0 (1) |
| Width | 3.6 in |
| Depth | 6 in |
| Height | 1 in |
| Weight | 1.5 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 260,000 hours |
| Compliant Standards | NEBS level 3, FCC Class A certified, UL |
| Networking | |
| Form Factor | External |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120 V (60 Hz) |
| Power Consumption Operational | 8.3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
