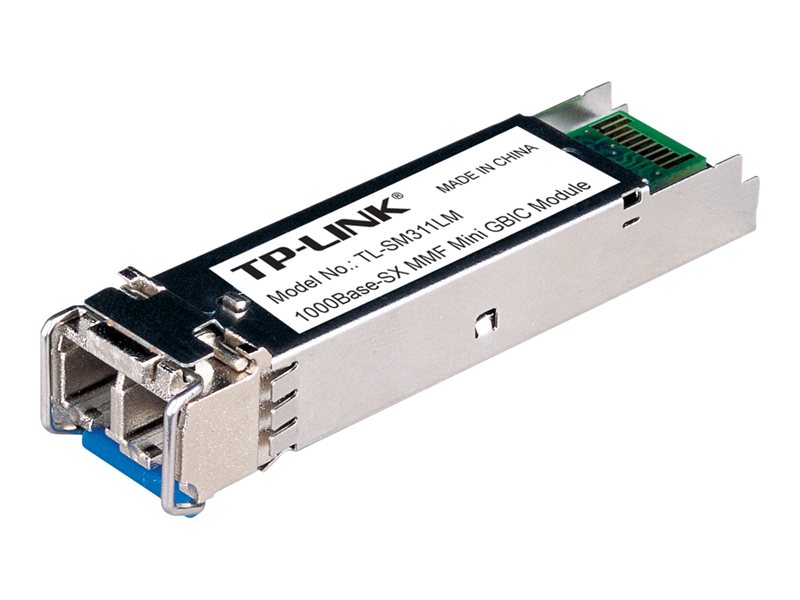

SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 1800 ft - 850 nm - for P/N: TL-SG3452XP V1
| Main Specifications | |
|---|---|
| Product Description | TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1800 ft |
| Designed For | P/N: TL-SG3452XP V1 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Status Indicators | Status |
| Features | Full duplex capability |
| Compliant Standards | IEEE 802.3z |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | P/N: TL-SG3452XP V1 |
