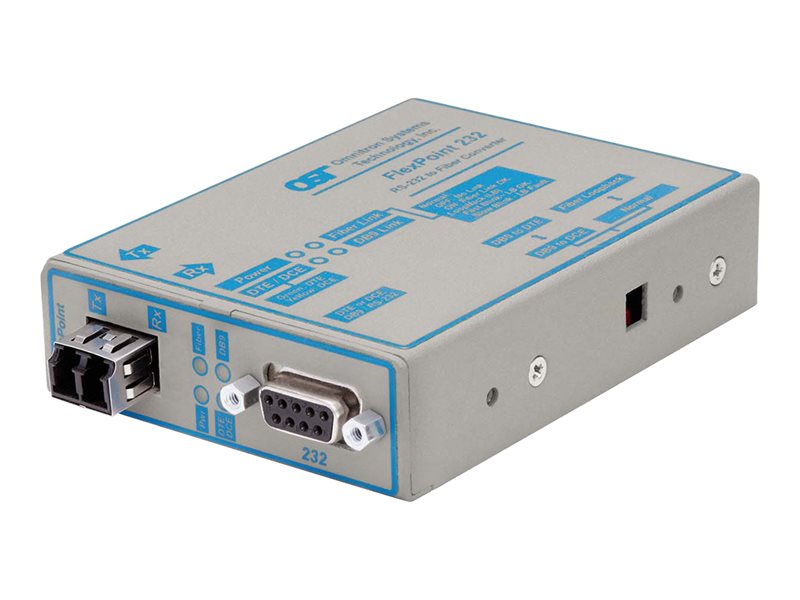

Media converter - RS-232 - LC single-mode / 9 pin D-Sub (DB-9) - up to 18.6 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Omnitron FlexPoint 232 - media converter - RS-232 |
| Device Type | Media converter - LC single-mode / 9 pin D-Sub (DB-9) |
| Form Factor | External |
| Data Transfer Rate | 115.2 Kbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | RS-232 |
| Max Transfer Distance | 18.6 miles |
| Dimensions (WxDxH) | 3 in x 4 in x 1 in |
| Weight | 6 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - RS-232 - LC single-mode female ¦ 1 x RS-232 - DB-9 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 18.6 miles |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 6 oz |
