Modular expansion base - 2U
| Main Specifications | |
|---|---|

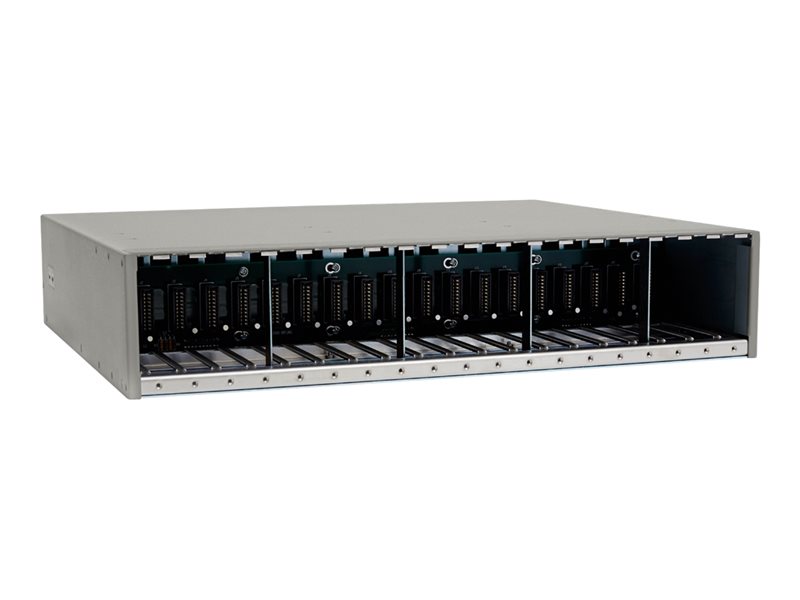

| Product Description | Omnitron iConverter 19-Module Chassis - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | External - 2U |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 14 in x 3.5 in |
| Weight | 18.52 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Height (Rack Units) | 2U |
| Installed Modules Qty (Max) | 0 (19) |
| Width | 17.2 in |
| Depth | 14 in |
| Height | 3.5 in |
| Weight | 18.52 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 19 (total) / 19 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, UL |
| Networking | |
| Form Factor | External |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 3 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
