Server - blade 2-way - no CPU - RAM 0 GB - SAS - hot-swap 2.5" bay(s) - no HDD - monitor: none
| Main Specifications | |
|---|---|

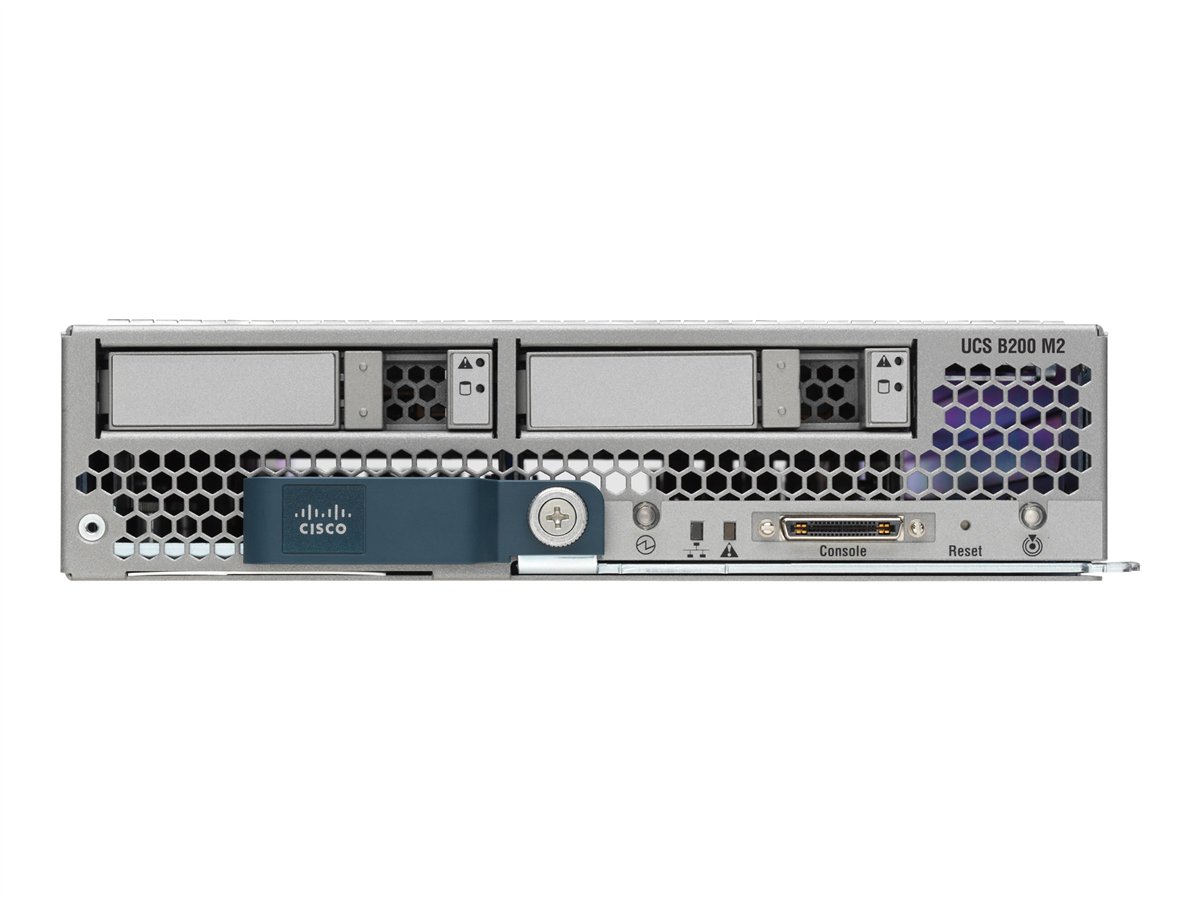

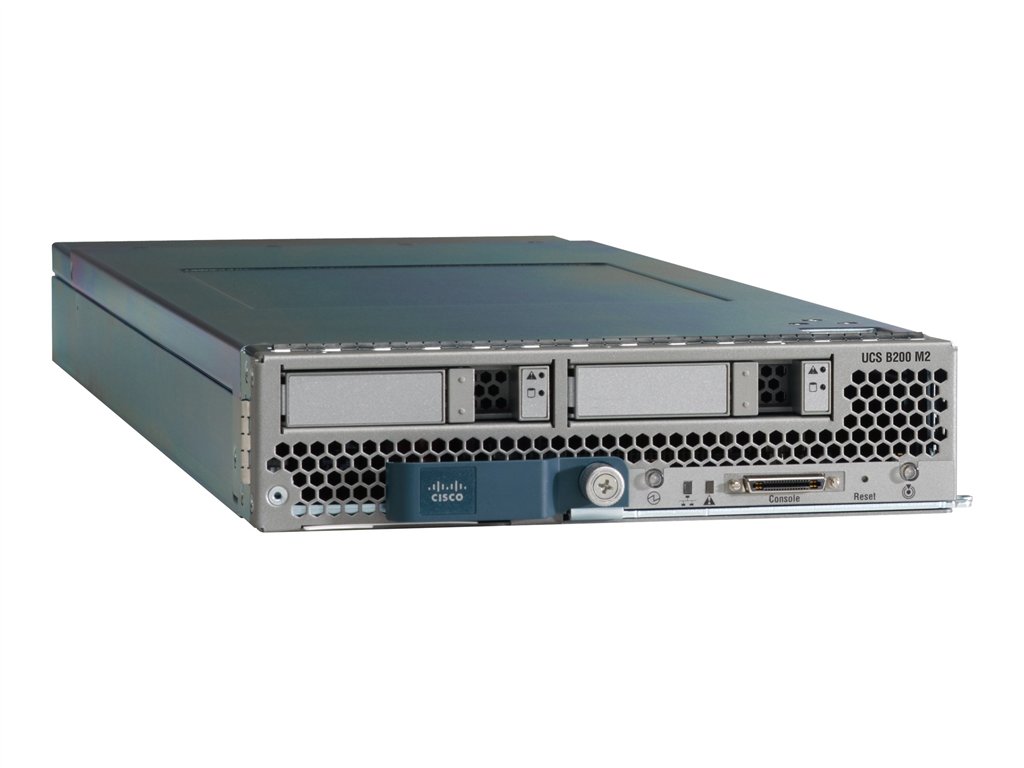

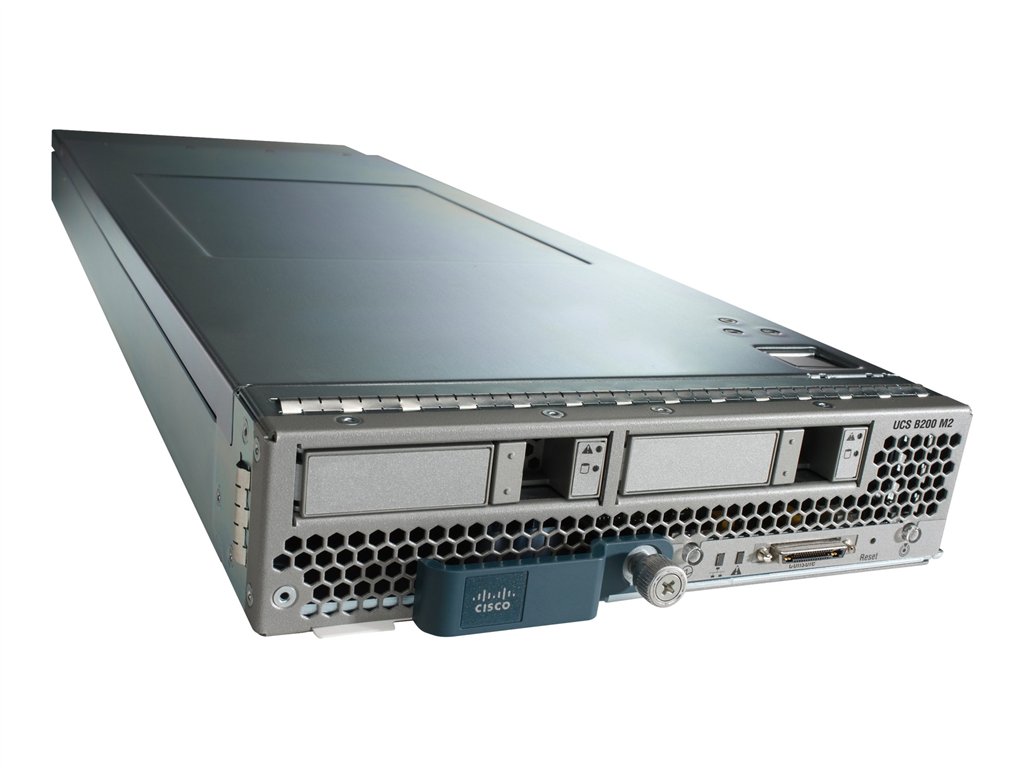

| Product Description | Cisco UCS B200 M2 Blade Server - blade - no CPU - 0 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | No CPU |
| RAM | 0 GB (installed) / 96 GB (max) - DDR3 SDRAM |
| Storage Controller | RAID |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| General | |
| Type | Server |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" |
| Slots | 0 (total) / 2 (free) x CPU ¦ 12 (total) / 12 (free) x memory ¦ 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
| RAM | |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR3 SDRAM |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 93% |
| Storage Controller | |
| Type | RAID - integrated |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Hard Drive | |
| Type | No HDD |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
