Gateway - 100Mb LAN, Modbus
| Main Specifications | |
|---|---|

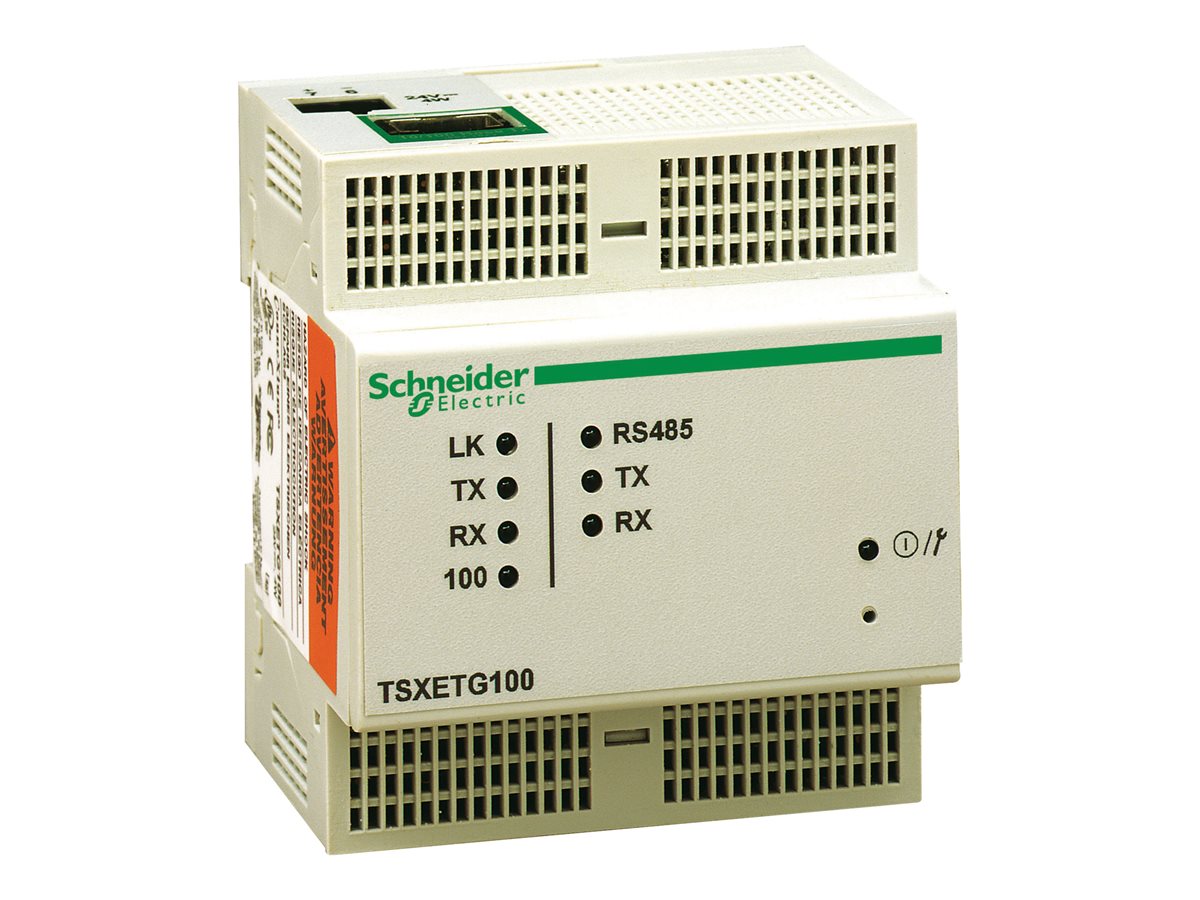

| Product Description | Schneider TSXETG100 - gateway |
| Device Type | Gateway |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Modbus |
| Included Accessories | PoE injector |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 12 in x 10 in x 6 in |
| Weight | 8.11 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Gateway |
| Width | 12 in |
| Depth | 10 in |
| Height | 6 in |
| Weight | 8.11 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x network ¦ 1 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | PoE injector |
| Compliant Standards | UL 60950, CSA 22.2 No. 60950 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Modbus |
| Network / Transport Protocol | TCP/IP |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% |
