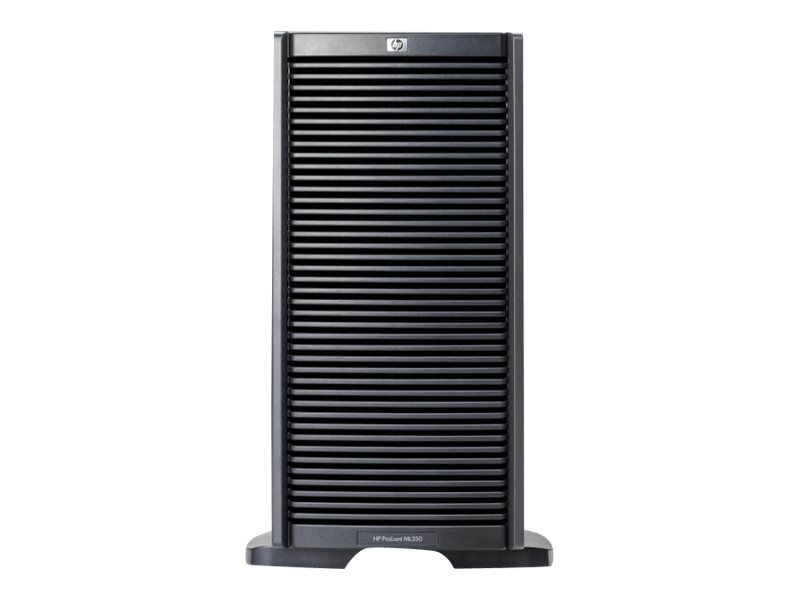

Server - tower 5U - 2-way - 1 x Xeon E5620 / up to 2.66 GHz - RAM 4 GB - SAS - hot-swap 3.5" bay(s) - no HDD - DVD - ATI ES1000 - Gigabit Ethernet - monitor: none - Smart Buy
| Main Specifications | |
|---|---|
| Type | Server - tower - system password, power-on password, disk configuration lock, serial port I/O control |
| Height (Rack Units) | 5U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5620 / 2.4 GHz (2.66 GHz) (Quad-Core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 4 GB (installed) / 144 GB (max) - DDR3 SDRAM - Advanced ECC - PC3-10600 |
| Storage Controller | RAID (SATA 3Gb/s / SAS 6Gb/s) - PCIe 2.0 x4 (Smart Array P410i); SATA |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | DVD |
| Graphics Controller | ATI ES1000 |
| Video Memory | 64 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 8.6 in x 23.5 in x 18.5 in |
| Weight | 54.01 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Tower - 5U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 5 |
| Hot-Swap Bays Qty | 6 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 5 (total) / 4 (free) x external 5.25" x 1/2H ¦ 6 (total) / 6 (free) x hot-swap 3.5" LFF |
| Slots | 4 (total) / 4 (free) x PCIe 2.0 x8 (x4 mode) ¦ 18 (total) / 16 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 |
| Interfaces | 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 4 x USB 2.0 (2 front, 2 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Features | System password, power-on password, disk configuration lock, serial port I/O control |
| Compliant Standards | ACPI 2.0, FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438 |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 4 GB (installed) / 144 GB (max) |
| Technology | DDR3 SDRAM - Advanced ECC |
| Effective Memory Speed | 1066 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 16 (empty) |
| Features | Registered, Memory Mirroring, dual rank |
| Configuration Features | 2 x 2 GB |
| RAM Supported | PC3-8500 - 192 GB registered ¦ PC3-10600 - 48 GB unbuffered ¦ PC3-10600 - 144 GB registered |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x4 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC326i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 2 |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 460 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - integrated - PCIe 2.0 x4 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Buffer Size | 256 MB |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | DVD-ROM DVD - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Video Memory | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Enterprise Linux |
| Storage Controller (2nd) | |
| Type | 1 x SATA - integrated |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 23.5 in |
| Height | 18.5 in |
| Weight | 54.01 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E5620 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 2.66 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Chipset Type | Intel 5520 |
