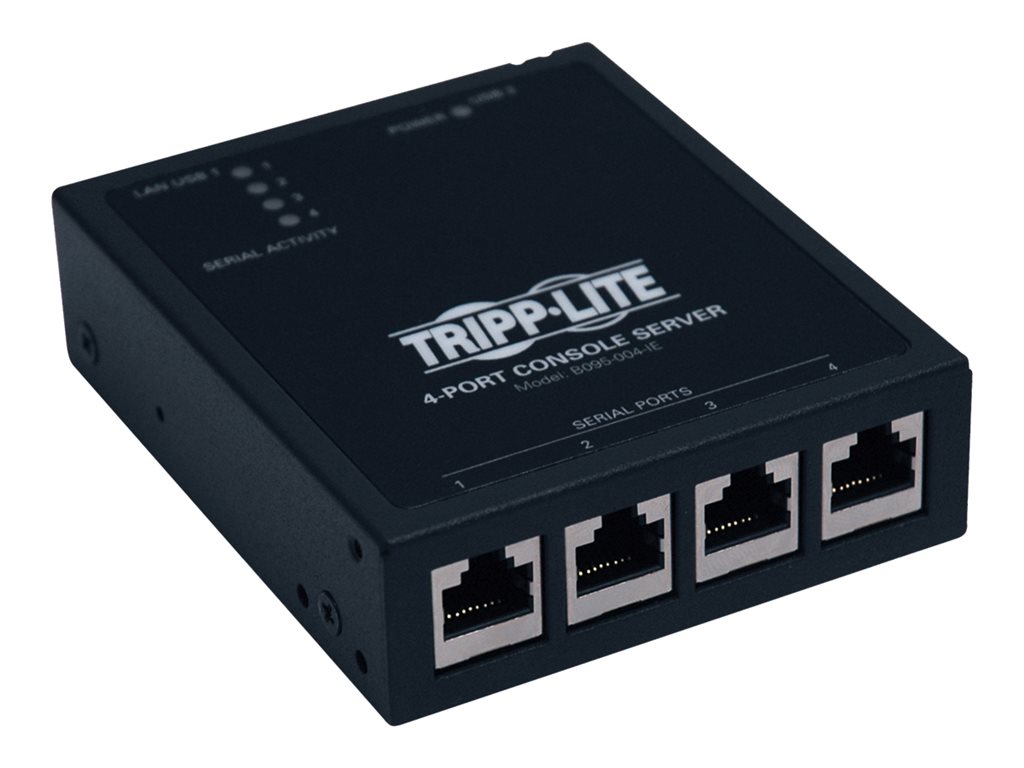

Console server - 4 ports - 100Mb LAN, RS-232 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite 4-Port IP Serial Console Server Terminal Server Management TAA GSA - console server - TAA Compliant |
| Device Type | Console server |
| Form Factor | External |
| Flash Memory | 2 GB |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 3.5 in x 4 in x 1.1 in |
| Manufacturer Warranty | 4-year warranty |
| General | |
| Device Type | Console server |
| Width | 3.5 in |
| Depth | 4 in |
| Height | 1.1 in |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232 - RJ-45 ¦ 1 x 100Base-TX - RJ-45 ¦ 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years |
| Miscellaneous | |
| Cables Included | 2 x serial adapter ¦ 2 x network cable |
| Compliant Standards | RoHS, FCC Part 15 A |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP |
| Remote Management Protocol | SNMP, Telnet, IPMI 1.5, HTTP, HTTPS, IPMI 2.0, SSH |
| Features | LDAP support, Syslog support, IP address filtering, firmware upgradable, DHCP server |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Processor / Memory / Storage | |
| Flash Memory | 2 GB |
