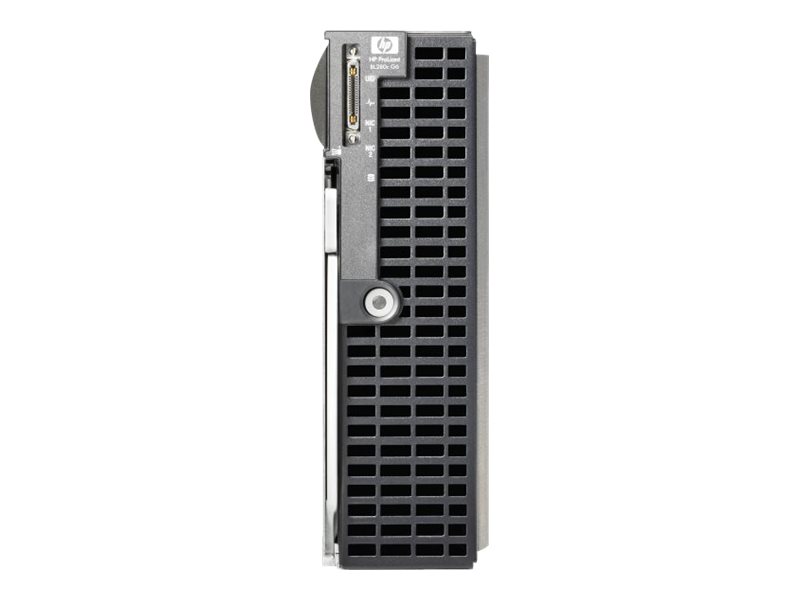

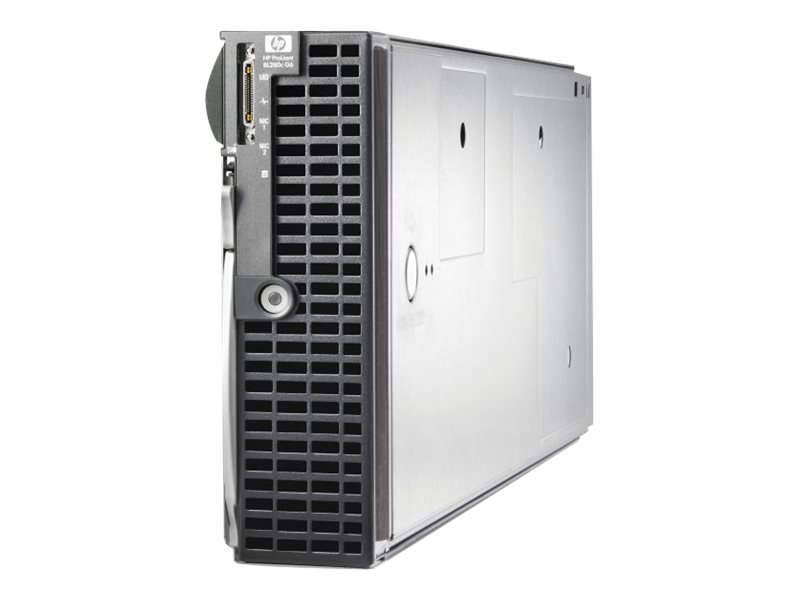

Server - blade 2-way - 1 x Xeon E5506 - RAM 2 GB - no HDD - ATI ES1000 - Gigabit Ethernet - monitor: none - Windows Server 2008 R2 Certified
| Main Specifications | |
|---|---|
| Type | Server - blade - administrator password, power-on password |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5506 / 2.13 GHz (Quad-Core) |
| Processor Socket | LGA1366 Socket |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 2 GB (installed) / 192 GB (max) - DDR3 SDRAM - Advanced ECC - PC3-10600 |
| Storage Controller | SATA (SATA 3Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ATI ES1000 |
| Video Memory | 32 MB DDR SDRAM |
| Networking | GigE |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Dimensions (WxDxH) | 2 in x 20.1 in x 7.1 in |
| Weight | 9.48 lbs |
| Manufacturer Warranty | Limited warranty - parts - 3 years |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" SFF |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Features | Administrator password, power-on password |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 2 GB (installed) / 192 GB (max) |
| Technology | DDR3 SDRAM - Advanced ECC |
| Effective Memory Speed | 800 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 12 (total) / 11 (empty) |
| Features | Registered, dual rank |
| Configuration Features | 1 x 2 GB |
| RAM Supported | 192 GB registered - ECC ¦ 48 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC362i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 2 |
| Features | Wake on LAN (WoL) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1ad |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% |
| Storage Controller | |
| Type | SATA - integrated |
| Controller Interface Type | SATA 3Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Video Memory | 32 MB DDR SDRAM |
| Operating System / Software | |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| OS Certified | Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 3, SunSoft Solaris 10, SuSE Linux Enterprise Server 9, Microsoft Windows Server 2003 Standard x64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x64 Edition, Microsoft Windows Server 2003 R2 Enterprise Edition, Microsoft Windows Server 2003 R2 Standard Edition, Microsoft Windows Server 2003 R2 Enterprise x64 Edition, Microsoft Windows Server 2003 R2 Standard x64 Edition, SuSE Linux Enterprise Server 10 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 20.1 in |
| Height | 7.1 in |
| Weight | 9.48 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E5506 |
| Clock Speed | 2.13 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Smart Cache |
| CPU Socket | LGA1366 Socket |
| Chipset Type | Intel 5500 |
