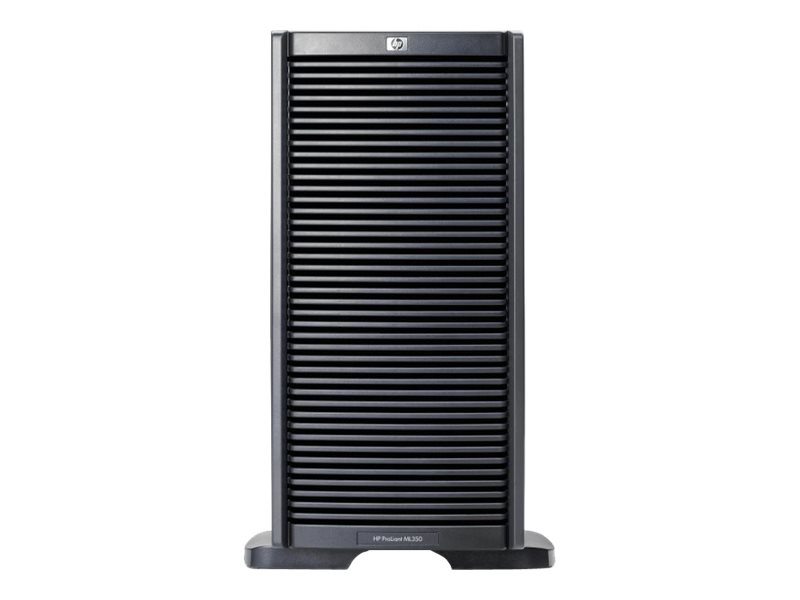

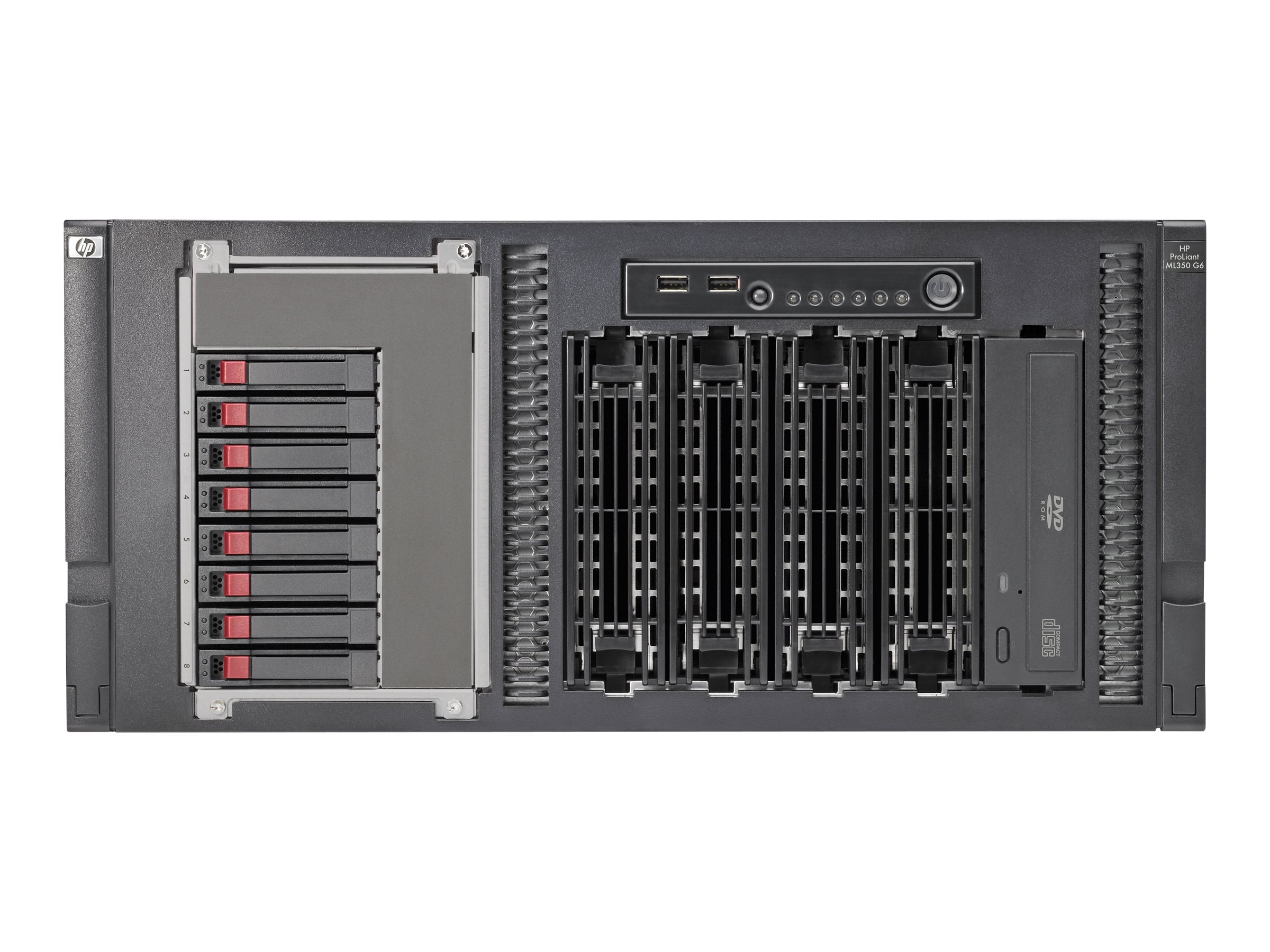

Server - tower 5U - 2-way - 1 x Xeon E5620 / up to 2.66 GHz - RAM 6 GB - SAS - hot-swap 2.5" bay(s) - no HDD - DVD - ATI ES1000 - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML350 G6 Base - tower - Xeon E5620 2.4 GHz - 6 GB - no HDD |
| Type | Server - tower - system password, power-on password, serial port I/O control |
| Height (Rack Units) | 5U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5620 / 2.4 GHz (2.66 GHz) (Quad-Core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 6 GB (installed) / 144 GB (max) - DDR3 SDRAM - PC3-10600 |
| Storage Controller | RAID (SATA 3Gb/s / SAS 6Gb/s) - PCIe 2.0 x4 (Smart Array P410i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | DVD |
| Graphics Controller | ATI ES1000 |
| Video Memory | 64 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 8.6 in x 23.5 in x 18.5 in |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Tower - 5U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 5 |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 5 (total) / 4 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 4 PCIe 2.0 x8 (x4 mode) ¦ 1 PCIe 2.0 x16 (x8 mode) ¦ 1 PCIe 2.0 x8 ¦ 18 (total) / 15 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU |
| Interfaces | 1 x display / video ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 4 x USB 2.0 (2 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Features | System password, power-on password, serial port I/O control |
| Compliant Standards | ACPI 2.0, FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438 |
| RAM | |
| Installed Size | 6 GB (installed) / 144 GB (max) |
| Technology | DDR3 SDRAM |
| Effective Memory Speed | 1333 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 18 (total) / 15 (empty) |
| Features | Registered |
| Configuration Features | 3 x 2 GB |
| RAM Supported | PC3-8500 - 192 GB registered ¦ PC3-10600 - 144 GB registered ¦ PC3-10600 - 48 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x4 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC326i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 460 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | RAID - plug-in card - PCIe 2.0 x4 |
| Controller Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Storage Controller Name | Smart Array P410i |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Buffer Size | 256 MB |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | DVD-ROM DVD - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Video Memory | 64 MB |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8.6 in |
| Depth | 23.5 in |
| Height | 18.5 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5620 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 2.66 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Chipset Type | Intel 5520 |
