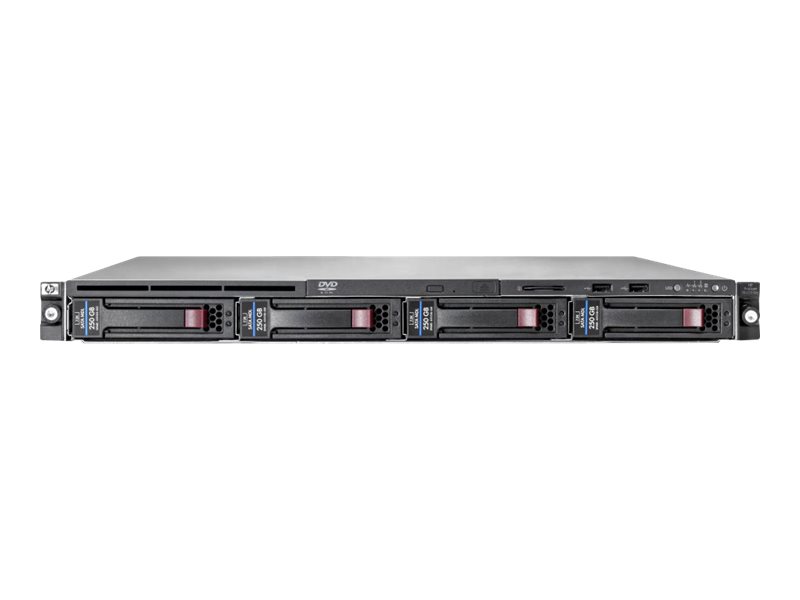

Server - rack-mountable 1U - 1-way - 1 x Xeon E5630 / up to 2.8 GHz - RAM 6 GB - SAS - hot-swap 3.5" bay(s) - no HDD - ATI ES1000 - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL320 G6 Performance - rack-mountable - Xeon E5630 2.53 GHz - 6 GB - no HDD |
| Type | Server - rack-mountable - administrator password, power-on password, keyboard password, USB port control, automatic server restart (ASR) |
| Height (Rack Units) | 1U |
| Localization | Region: United States |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E5630 / 2.53 GHz (2.8 GHz) (Quad-Core) |
| Processor Socket | LGA1366 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Smart Cache |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 6 GB (installed) / 144 GB (max) - DDR3 SDRAM - ECC - PC3-10600 |
| Storage Controller | RAID (SATA 3Gb/s / SAS) (Smart Array P410); SATA (SATA 1.5Gb/s) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ATI ES1000 |
| Video Memory | 32 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 26.9 in x 1.7 in |
| Weight | 24.03 lbs |
| Manufacturer Warranty | Limited warranty - parts - 3 years - on-site |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 0 (free) x external |
| Slots | 1 (total) / 1 (free) x PCIe x16 - half-length, low-profile (x4 mode) ¦ 1 (total) / 1 (free) x PCIe x16 - full-length (x16 mode) |
| Interfaces | 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 2 x VGA ¦ 6 x USB 2.0 (2 front, 4 rear) ¦ 2 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years - on-site |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, USB port control, automatic server restart (ASR) |
| Compliant Standards | ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438 |
| RAM | |
| Installed Size | 6 GB (installed) / 144 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Effective Memory Speed | 1066 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 9 (total) / 6 (empty) |
| Features | Registered |
| Configuration Features | 3 x 2 GB |
| RAM Supported | 144 GB registered - ECC ¦ 24 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC326i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 400 Watt |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - plug-in card |
| Controller Interface Type | SATA 3Gb/s / SAS |
| Storage Controller Name | Smart Array P410 |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Buffer Size | 256 MB |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ATI ES1000 |
| Video Memory | 32 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Storage Controller (2nd) | |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA 1.5Gb/s |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 26.9 in |
| Height | 1.7 in |
| Weight | 24.03 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E5630 |
| Clock Speed | 2.53 GHz |
| Max Turbo Speed | 2.8 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Smart Cache |
| CPU Socket | LGA1366 Socket |
| Chipset Type | Intel 5500 |
