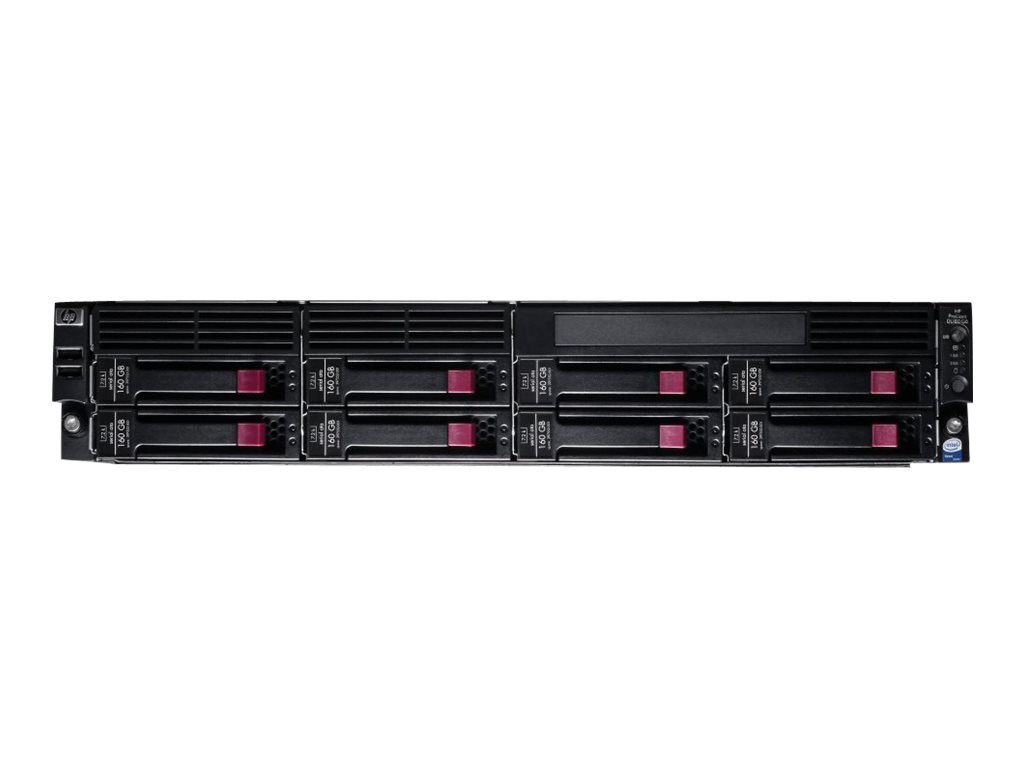

Server - rack-mountable 2U - 2-way - 1 x Xeon E5620 / up to 2.66 GHz - RAM 8 GB - SAS - hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none - Windows Server 2008 R2 Certified
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL180 G6 - rack-mountable - Xeon E5620 2.4 GHz - 8 GB - no HDD |
| Type | Server - rack-mountable - system password, power-on password |
| Height (Rack Units) | 2U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5620 / 2.4 GHz (2.66 GHz) (Quad-Core) |
| Processor Socket | LGA1366 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 8 GB (installed) / 192 GB (max) - DDR3 SDRAM - ECC - PC3-10600 |
| Storage Controller | RAID (SATA 1.5Gb/s / SAS) - PCIe 2.0 x8 (Smart Array P212) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Graphics Controller | Shared video memory (UMA) |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| Dimensions (WxDxH) | 17.6 in x 28.2 in x 3.5 in |
| Weight | 26.23 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 12 (total) / 12 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe x16 - low-profile ¦ 2 (total) / 1 (free) x PCIe x8 - full-length, full-height ¦ 12 (total) / 10 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU |
| Interfaces | 1 x serial ¦ 1 x display / video ¦ 4 x USB (2 front, 2 rear) ¦ 1 x VGA ¦ 1 x HPE iLO ¦ 2 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | System password, power-on password |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 8 GB (installed) / 192 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Effective Memory Speed | 1066 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 12 (total) / 10 (empty) |
| Features | Registered |
| Configuration Features | 2 x 4 GB |
| RAM Supported | 192 GB registered - ECC ¦ 48 GB unbuffered - ECC |
| Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP NC362i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x RAID - plug-in card - PCIe 2.0 x8 |
| Controller Interface Type | SATA 1.5Gb/s / SAS |
| Storage Controller Name | Smart Array P212 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 50 |
| Buffer Size | 256 MB |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Shared video memory (UMA) |
| Max Allocated RAM Size | 32 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| Windows Server Certified | This server is tested, tuned and certified for Windows Server 2008 R2 with OEM-branded hardware. Purchase a Reseller Option Kit to have your server solution pre-loaded. |
| OS Certified | Novell NetWare, Microsoft Windows 2000 Server, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, SunSoft Solaris 10, UnitedLinux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 28.2 in |
| Height | 3.5 in |
| Weight | 26.23 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E5620 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 2.66 GHz |
| Number of Cores | Quad-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| CPU Socket | LGA1366 Socket |
| Chipset Type | Intel 5520 |
