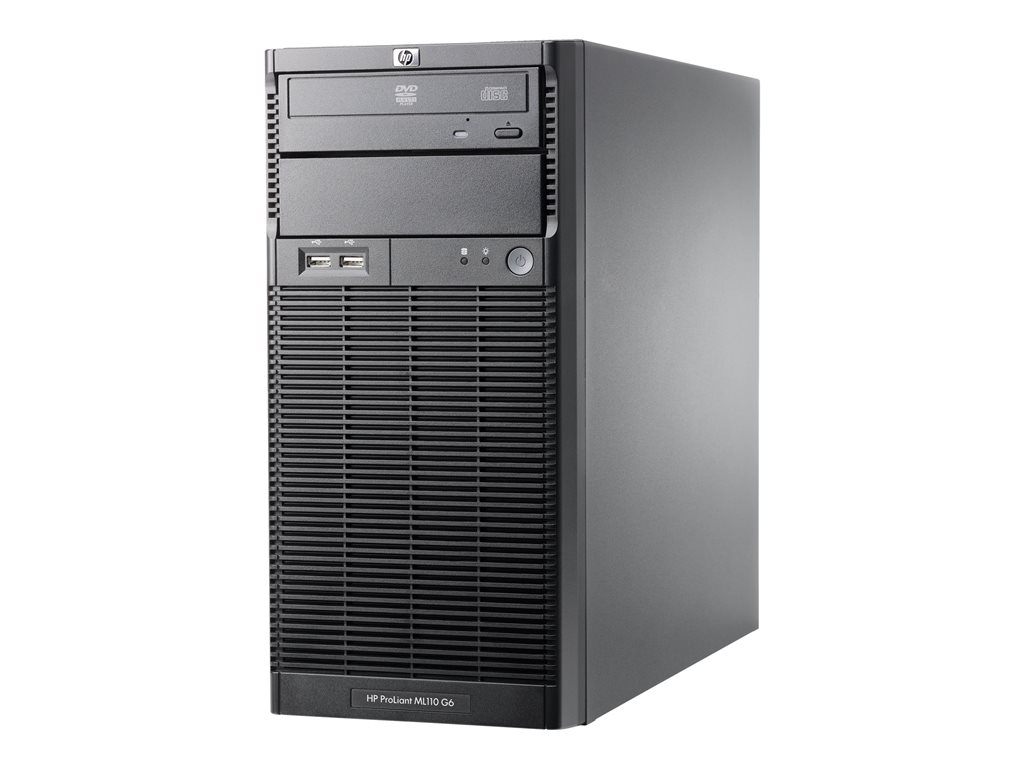

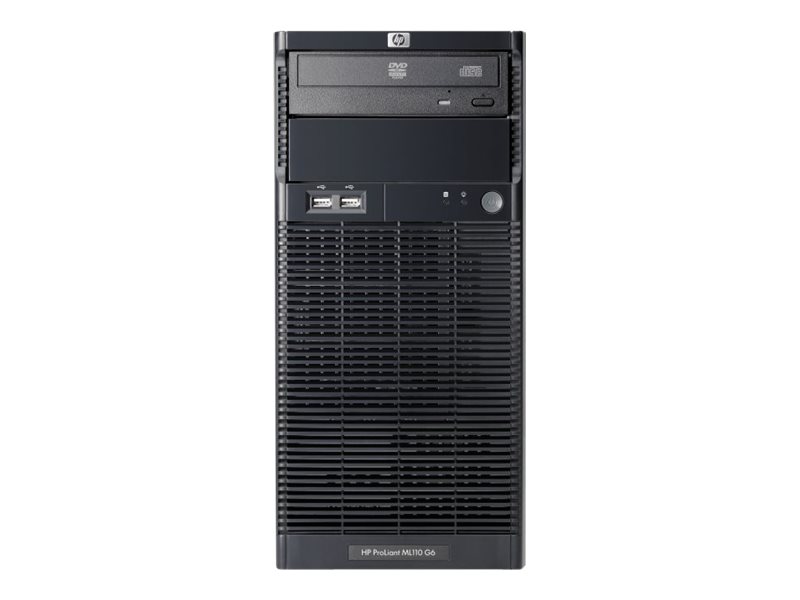

Server - micro tower 4U - 1 x Pentium G6950 - RAM 2 GB - HDD 160 GB - DVD - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML110 G6 Entry - micro tower - Pentium G6950 2.8 GHz - 2 GB - HDD 160 GB |
| Type | Server - micro tower - system password, power-on password |
| Height (Rack Units) | 4U |
| Processor | 1 x Intel Pentium G6950 / 2.8 GHz (Dual-Core) |
| Processor Socket | LGA1156 Socket |
| Cache Memory | 3 MB L3 cache |
| Cache Per Processor | 3 MB |
| RAM | 2 GB (installed) / 16 GB (max) - DDR3 SDRAM - ECC - PC3-10600 |
| Storage Controller | SATA |
| Hard Drive | HDD 160 GB - SATA 3Gb/s - 7200 rpm |
| Optical Storage | DVD |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.9 in x 16.8 in x 14.4 in |
| Weight | 25.13 lbs |
| General | |
| Type | Server |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Micro tower - 4U |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 1 (free) x external 5.25" x 1/2H ¦ 4 (total) / 3 (free) x internal 3.5" x 1/3H |
| Slots | 1 (total) / 1 (free) x PCIe x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe x16 - full-length, full-height (x1 mode) ¦ 1 (total) / 1 (free) x PCI - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe x4 - half-length, full-height ¦ 1 (total) / 0 (free) x CPU ¦ 4 (total) / 3 (free) x DIMM 240-pin |
| Interfaces | 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 6 x USB (2 front, 4 rear) ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Features | System password, power-on password |
| Compliant Standards | ACPI 2.0 |
| RAM | |
| Installed Size | 2 GB (installed) / 16 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Effective Memory Speed | 1066 MHz |
| Rated Memory Speed | 1333 MHz |
| Memory Specification Compliance | PC3-10600 |
| Form Factor | DIMM 240-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 2 GB |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express |
| Ethernet Controller | HP NC107i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights Out 100i Remote Management Processor |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 300 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x SATA - integrated |
| Channel Qty | 6 |
| Cache Memory | |
| Installed Size | L3 cache - 3 MB |
| Cache Per Processor | 3 MB |
| Optical Storage | |
| Type | DVD-ROM DVD - SATA |
| Read Speed | 48x (CD) / 16x (DVD) |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Max Allocated RAM Size | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 160 GB |
| Interface Type | SATA 3Gb/s |
| Spindle Speed | 7200 rpm |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 16.8 in |
| Height | 14.4 in |
| Weight | 25.13 lbs |
| Processor / Chipset | |
| CPU | Intel Pentium G6950 |
| Clock Speed | 2.8 GHz |
| Number of Cores | Dual-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Socket | LGA1156 Socket |
| Chipset Type | Intel 3420 |
| Front Side Bus | 1066 MHz |
