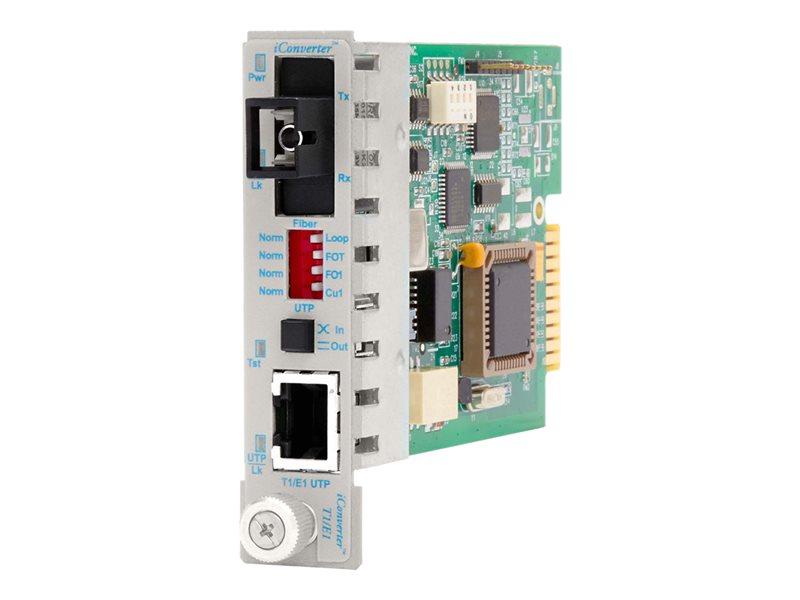

Fiber media converter - SC single-mode / RJ-45/RJ-48 - up to 12.4 miles - T-1/E-1 - 1310 (TX) / 1550 (RX) nm
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter T1/E1 - fiber media converter |
| Device Type | Fiber media converter - SC single-mode / RJ-45/RJ-48 |
| Form Factor | Plug-in module |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Max Transfer Distance | 12.4 miles |
| Dimensions (WxDxH) | 0.9 in x 4.5 in x 2.8 in |
| Weight | 8.01 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x network - SC single-mode female ¦ 1 x T1/E1 - RJ-45/RJ-48 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 580,000 hours |
| Compliant Standards | FCC Class A certified, UL |
| Networking | |
| Connectivity Technology | Wired |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Line Rate | T-1/E-1 |
| Max Transfer Distance | 12.4 miles |
| Status Indicators | Power, test mode, link/activity |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 4.5 in |
| Height | 2.8 in |
| Weight | 8.01 oz |
