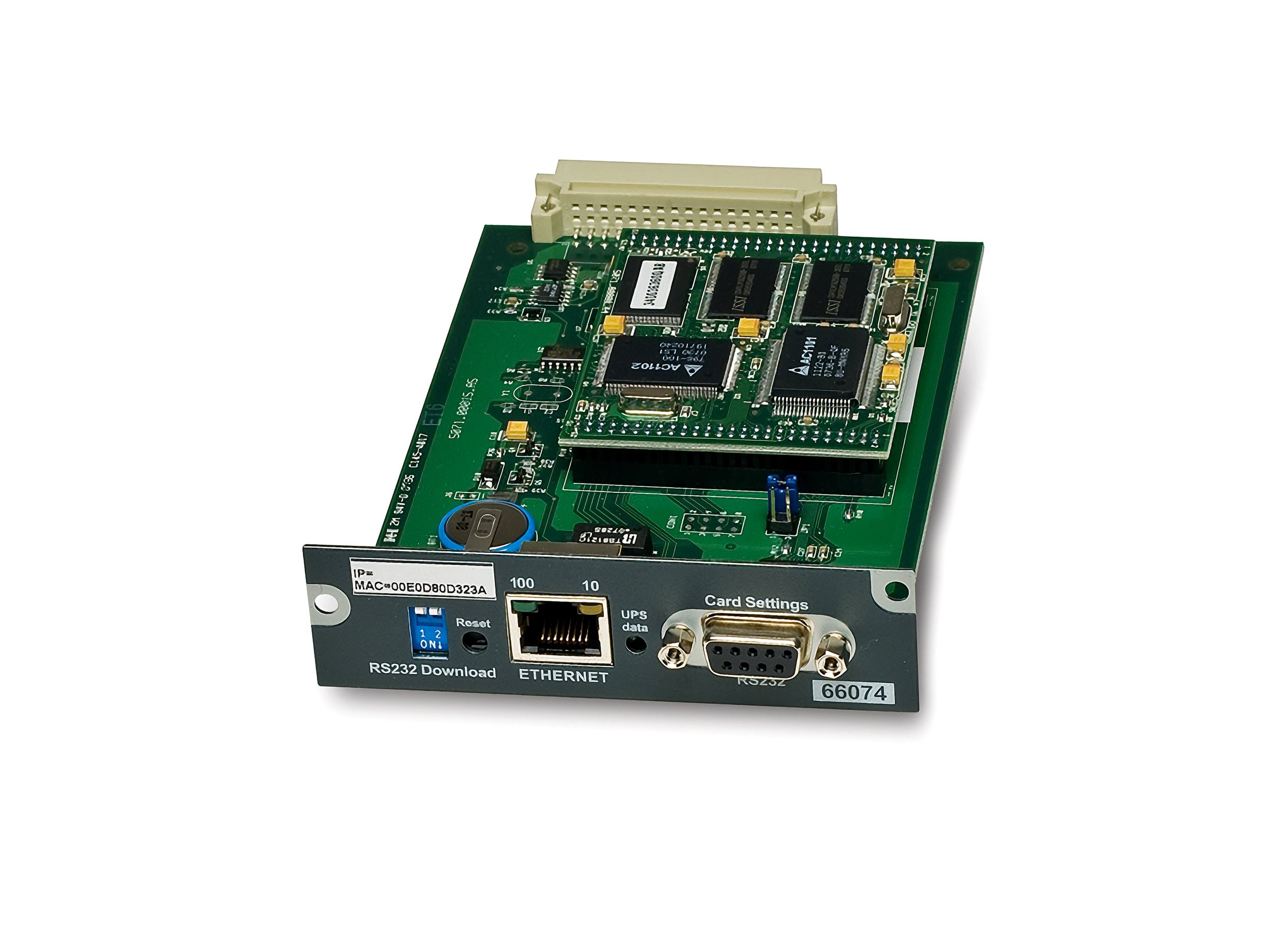

Remote management adapter - 100Mb LAN, RS-232 - 100Base-TX - gray - for Eaton Upsilon STS; Comet 3000, S31; Galaxy 3000, 5000; MGE UPS Galaxy 4000, 5000
| Main Specifications | |
|---|---|
| Product Description | MGE SNMP/Web Card - remote management adapter |
| Device Type | Remote management adapter |
| Form Factor | Plug-in card |
| Dimensions (WxDxH) | 3.9 in x 5.7 in x 1.1 in |
| Weight | 10.58 oz |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, RS-232 |
| Data Transfer Rate | 100 Mbps |
| Color | Gray |
| Manufacturer Warranty | 1-year warranty |
| Designed For | Eaton Upsilon STS; Comet 3000, S31; Galaxy 3000, 5000; MGE UPS Comet 3000, S31; EPS 6000; Galaxy 1000, 3000 10kVA, 3000 15kVA, 3000 20kVA, 3000 30kVA, 4000, 5000, PW |
| General | |
| Device Type | Remote management adapter |
| Form Factor | Plug-in card |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Compatible Slots | 1 x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN 60950, EN 61000-3-2 |
| Color | Gray |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Data Transfer Rate | 100 Mbps |
| Remote Management Protocol | SNMP, HTTP |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 5.7 in |
| Height | 1.1 in |
| Weight | 10.58 oz |
| Compatibility Information | |
| Designed For | Eaton Upsilon STS ¦ Eaton Comet 3000, 3000 Redundant, S31 ¦ Eaton Galaxy 3000, 3000 Parallelable, 5000 ¦ MGE UPS Comet 3000, 3000 Redundant, S31 ¦ MGE UPS EPS 6000 ¦ MGE UPS Galaxy 1000 PW, 3000 10kVA, 3000 10kVA Parallelable, 3000 15kVA, 3000 15kVA Parallelable, 3000 20kVA, 3000 20kVA Parallelable, 3000 30kVA, 3000 30kVA Parallelable, 4000, 5000, PW |
