Modular expansion base - 2 ports - 100Mb LAN
| Main Specifications | |
|---|---|

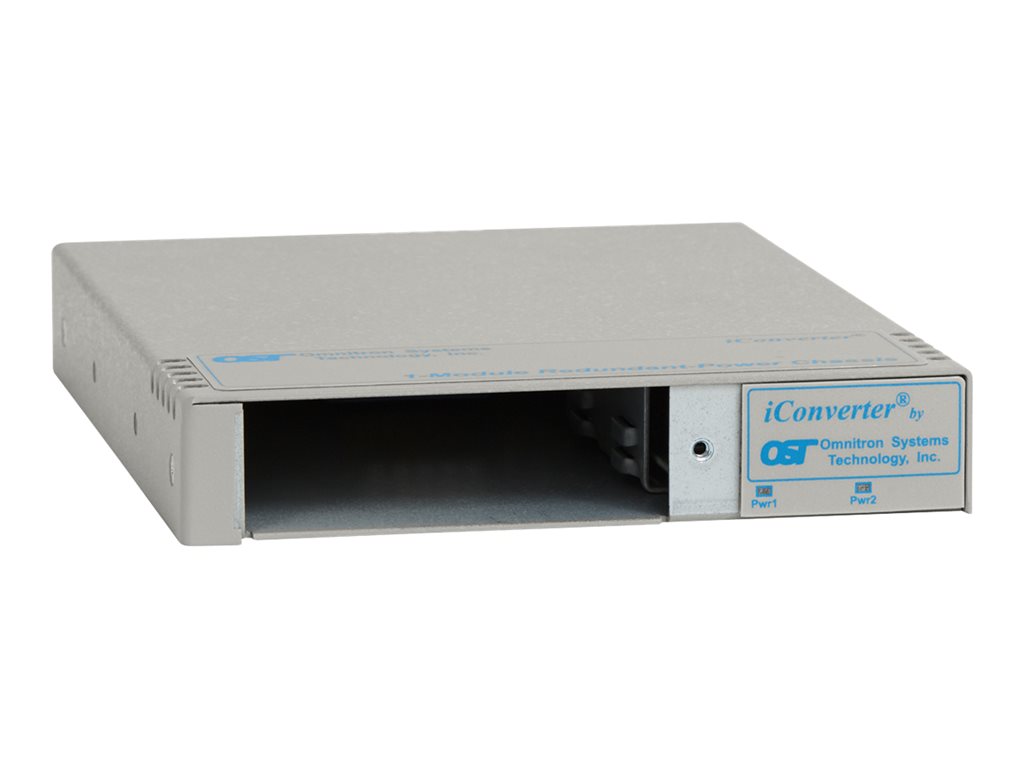

| Product Description | Omnitron iConverter 1 Module Redundant Power Chassis - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | External |
| Localization | United States |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Power | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 5.4 in x 6.8 in x 1 in |
| Weight | 1.5 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Installed Modules Qty (Max) | 0 (1) |
| Width | 5.4 in |
| Depth | 6.8 in |
| Height | 1 in |
| Weight | 1.5 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 2 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 250,000 hours |
| Compliant Standards | UL, VCCI Class A ITE, AS/NZS 3548, FCC |
| Networking | |
| Form Factor | External |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Features | Dying Gasp support |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 120 V (60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
