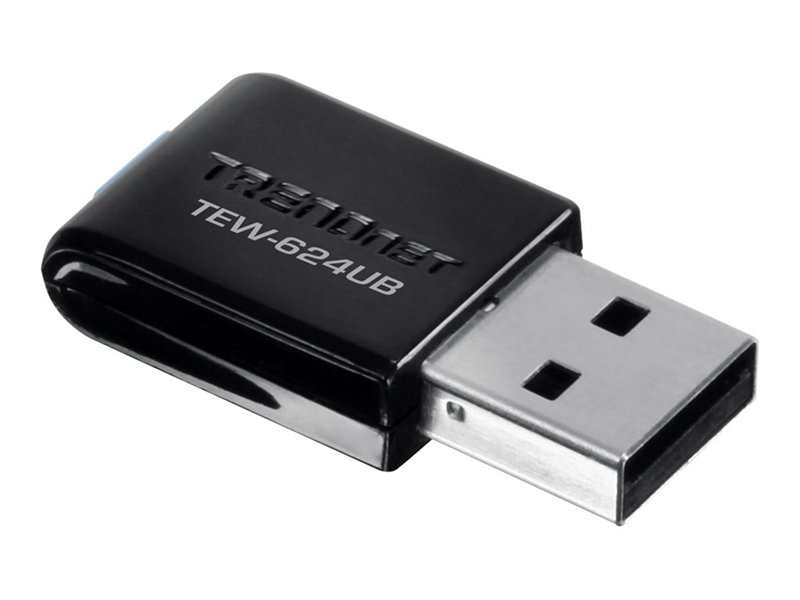

Network adapter - USB 2.0 - 802.11b/g, 802.11n (draft)
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW-624UB - network adapter - USB 2.0 |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Dimensions (WxDxH) | 1.1 in x 3.1 in x 0.5 in |
| Weight | 0.71 oz |
| Data Link Protocol | 802.11b/g, 802.11n (draft) |
| Data Transfer Rate | 300 Mbps |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft) |
| System Requirements | Microsoft Windows Vista / 2000 / XP |
| Microsoft Certification | Certified for Windows Vista |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK |
| Certified for Windows Vista | Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security. |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft) |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Frequency Band | 2.4 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / 2000 / XP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Dimensions & Weight | |
| Width | 1.1 in |
| Depth | 3.1 in |
| Height | 0.5 in |
| Weight | 0.71 oz |
| Antenna | |
| Antenna | Internal |
| Gain Level | 3 dBi |
