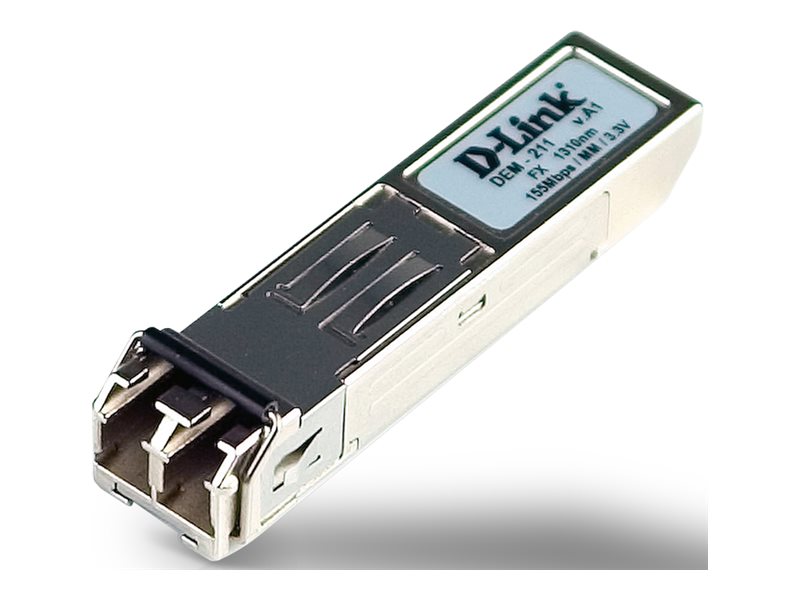

SFP (mini-GBIC) transceiver module - 100Mb LAN - 100Base-FX - LC multi-mode - up to 1.2 miles - 1310 nm - for DES 1210; DGS 1210, 3100; Nuclias Cloud-Managed DBS-2000-28, 2000-52; xStack DES-3552
| Main Specifications | |
|---|---|
| Product Description | D-Link DEM 211 - SFP (mini-GBIC) transceiver module - 100Mb LAN |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100Base-FX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Designed For | DES 1210; DGS 1210-10P/ME, 3100-24, 3100-24P, 3100-48, 3100-48P; Nuclias Cloud-Managed DBS-2000-28MP, DBS-2000-52MP; xStack DES-3552 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - LC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, TUV, VCCI, ICES-003, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Full duplex mode |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3x |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | D-Link DES 1210 ¦ D-Link DGS 1210-10P/ME, 3100-24, 3100-24P, 3100-48, 3100-48P ¦ D-Link Nuclias Cloud-Managed DBS-2000-28MP, DBS-2000-52MP ¦ D-Link xStack DES-3552 |
