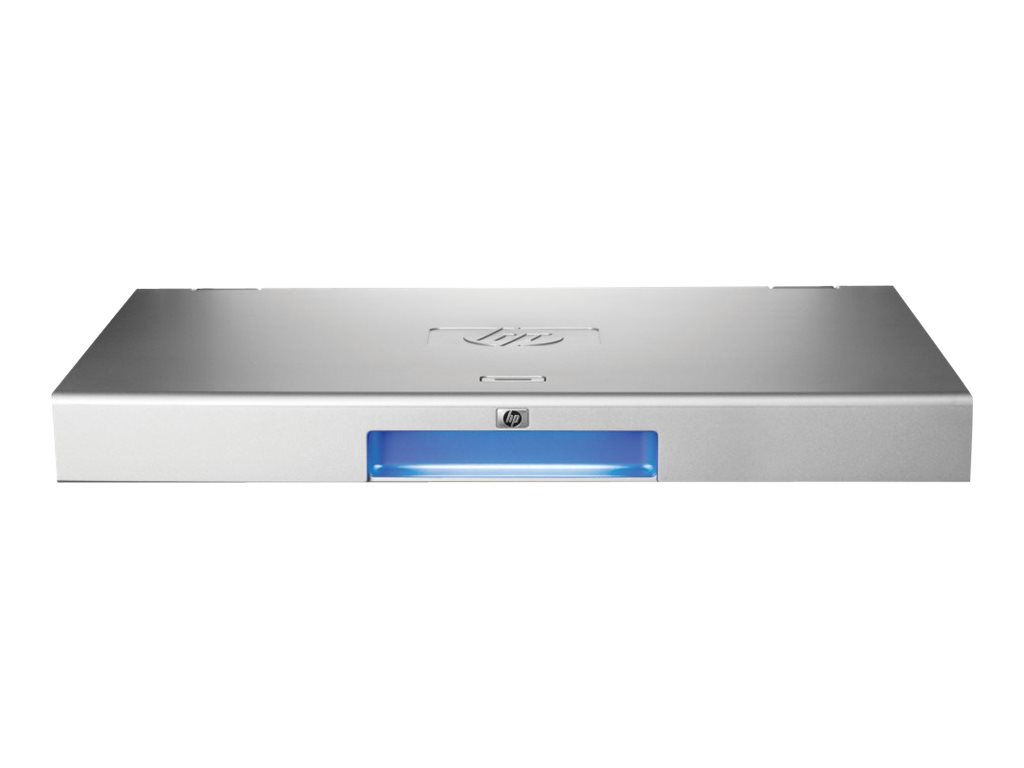

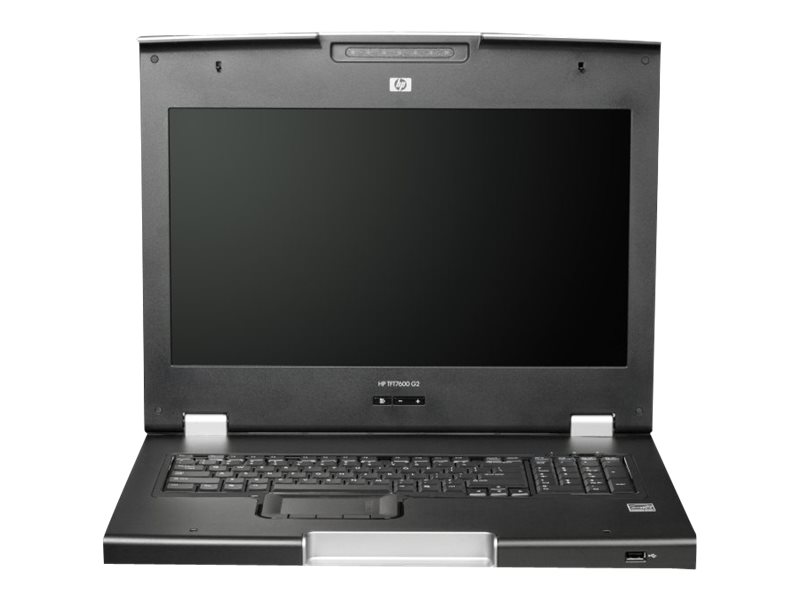

KVM console - PS/2 - 17" - rack-mountable - 1440 x 900 @ 75 Hz - 190 cd/m² - 350:1 - 25 ms - VGA - 1U - for ProLiant DL120 G6, DL320 G6, DL380 G6, DL385 G5, DL385 G5p, DL585 G6, DL785 G5, DL785 G6
| Main Specifications | |
|---|---|
| Product Description | HPE TFT7600 - KVM console - 17" |
| Device Type | KVM console - 17" |
| KVM Switch | PS/2 |
| Features | Keyboard, touchpad, scroll button |
| Aspect Ratio | 16:10 |
| Native Resolution | 1440 x 900 at 75 Hz |
| Brightness | 190 cd/m² |
| Contrast Ratio | 350:1 |
| Response Time | 25 ms |
| Input Connectors | VGA |
| Screen Coating | Anti-glare |
| Voltage | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 16.7 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 3-year warranty |
| Designed For | ProLiant BL20p G3, BL20p G4, BL460c, DL120 G6, DL320 G5p, DL320 G6, DL360 G5, DL365, DL365 G5, DL380 G4, DL380 G5, DL380 G6, DL385, DL385 G2, DL385 G5, DL385 G5p, DL585 G6, DL785 G5, DL785 G6, ML350 G5, ML370 G5 |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 16:10 |
| Native Resolution | 1440 x 900 at 75 Hz |
| Brightness | 190 cd/m² |
| Contrast Ratio | 350:1 |
| Response Time | 25 ms |
| Screen Coating | Anti-glare |
| Controls & Adjustments | Brightness, contrast |
| OSD Languages | Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Dimensions (WxDxH) | 17 in x 16.7 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 9.92 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Mounting Kit | Included |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 30 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Connectivity | |
| Interfaces | 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x keyboard - 6 pin mini-DIN (PS/2 style) ¦ 1 x mouse - 6 pin mini-DIN (PS/2 style) |
| KVM | |
| Keyboard / Mouse Interface | PS/2 |
| Compatibility Information | |
| Designed For | HPE ProLiant BL20p G3, BL20p G4, BL460c, DL120 G6, DL120 G6 Base, DL120 G6 Performance, DL320 G5p, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL360 G5, DL360 G5 Base, DL360 G5 Entry, DL360 G5 Performance, DL365 Base, DL365 Entry, DL365 G5 Base, DL365 G5 Entry, DL365 G5 High Efficiency, DL365 G5 Performance, DL365 Performance, DL380 G4, DL380 G5, DL380 G5 Base, DL380 G5 Entry, DL380 G5 High Performance, DL380 G6, DL380 G6 Entry, DL385, DL385 G2 Base, DL385 G2 Entry, DL385 G2 High Performance, DL385 G5, DL385 G5 Base, DL385 G5 Entry, DL385 G5 Performance, DL385 G5p Base, DL385 G5p High Performance, DL585 G6, DL585 G6 Base, DL785 G5, DL785 G6, DL785 G6 Base, DL785 G6 Performance, ML350 G5, ML350 G5 Base, ML350 G5 Entry, ML370 G5 Base, ML370 G5 Entry, ML370 G5 Performance |
| Input | |
| Type | Keyboard, touchpad, scroll button |
