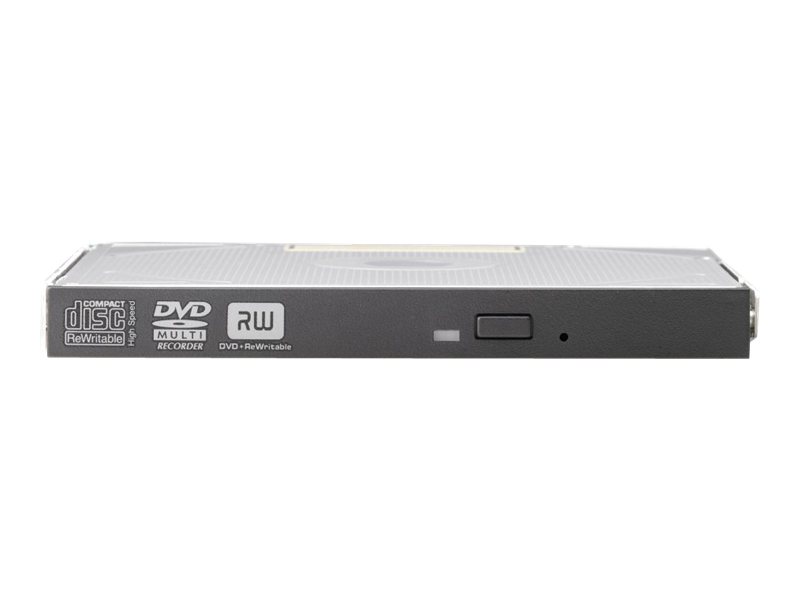

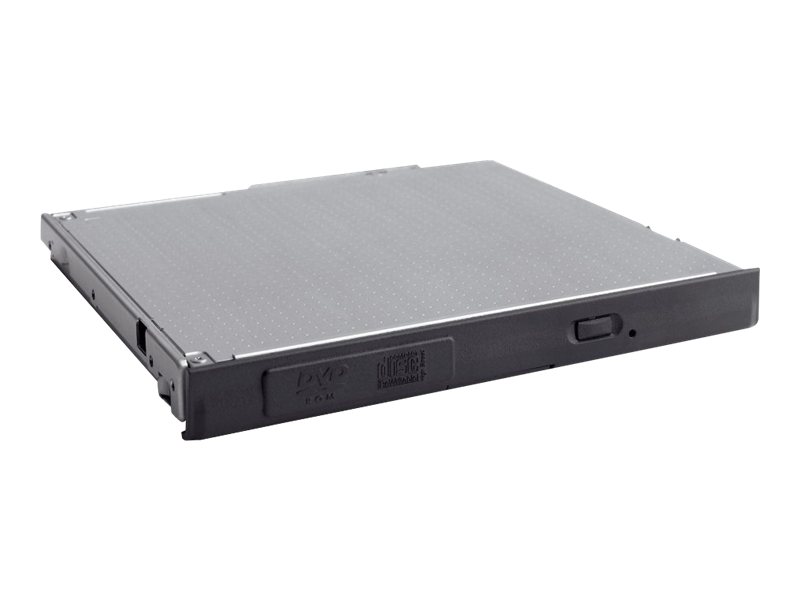

Disk drive - DVD±RW - 8x/8x - IDE - internal - 5.25" Slim Line - for ProLiant DL365, DL365 G5, DL385 G2, DL385 G5, DL580 G5, DL585 G6, DL785 G5, DL785 G6
| Main Specifications | |
|---|---|
| Product Description | HPE DVD±RW drive - IDE - internal |
| Device Type | DVD±RW drive - internal |
| Interface | IDE |
| Dimensions (WxDxH) | 5.2 in x 5.4 in x 0.5 in |
| Optical Storage | DVD±RW - 5.25" x 1/6H (Slim Line) |
| Read Speed | 24x (CD) / 8x (DVD) |
| Write Speed | 24x (CD) / 8x (DVD±R) |
| Rewrite Speed | 10x (CD) / 4x (DVD±RW) |
| Media Load Type | Tray |
| Designed For | ProLiant DL320 G2, DL360 G3, DL360 G4, DL360 G4p, DL360 G5, DL365, DL365 G5, DL380 G3, DL380 G4, DL380 G5, DL385, DL385 G2, DL385 G5, DL560, DL580 G2, DL580 G4, DL580 G5, DL585, DL585 G6, DL740, DL785 G5, DL785 G6, ML570 G4 |
| General | |
| Device Type | DVD±RW drive - internal |
| Interface | IDE |
| Width | 5.2 in |
| Depth | 5.4 in |
| Height | 0.5 in |
| Expansion / Connectivity | |
| Interfaces | 1 x IDE/ATAPI ¦ 1 x audio out |
| Compatible Bay | 1 x 5.25" x 1/6H (Slim Line) - front accessible |
| Miscellaneous | |
| MTBF | 60,000 hour(s) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% |
| Optical Storage | |
| Type | DVD±RW - 5.25" x 1/6H (Slim Line) |
| Read Speed | 24x (CD) / 8x (DVD) |
| Write Speed | 24x (CD) / 8x (DVD±R) |
| Rewrite Speed | 10x (CD) / 4x (DVD±RW) |
| Supported Media Formats | CD Text, CD-DA (audio), CD-I, CD-ROM XA, Photo CD, Video CD, CD-ROM, DVD-Video |
| Supported Media Types | CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-R, DVD-RW, DVD+RW, DVD+R, DVD+R DL |
| Media Load Type | Tray |
| Access Time | 130 ms (CD), 130 ms (DVD) |
| Buffer Size | 2 MB |
| Compliant Standards | Video CD |
| Compatibility Information | |
| Designed For | HPE ProLiant DL320 G2, DL360 G3, DL360 G4, DL360 G4p, DL360 G5, DL360 G5 Base, DL360 G5 Entry, DL360 G5 Performance, DL365 Base, DL365 Entry, DL365 G5 Base, DL365 G5 Entry, DL365 G5 High Efficiency, DL365 G5 Performance, DL365 Performance, DL380 G3, DL380 G4, DL380 G4 High Performance, DL380 G5, DL380 G5 Base, DL380 G5 Entry, DL380 G5 High Performance, DL385, DL385 G2 Base, DL385 G2 Entry, DL385 G2 High Performance, DL385 G5, DL385 G5 Base, DL385 G5 Entry, DL385 G5 Performance, DL560, DL580 G2, DL580 G4 High Performance, DL580 G5 Highly Serviceable Tower, DL585, DL585 G6, DL585 G6 Base, DL740, DL785 G5, DL785 G6, DL785 G6 Base, DL785 G6 Performance, ML570 G4, ML570 G4 High Performance |
