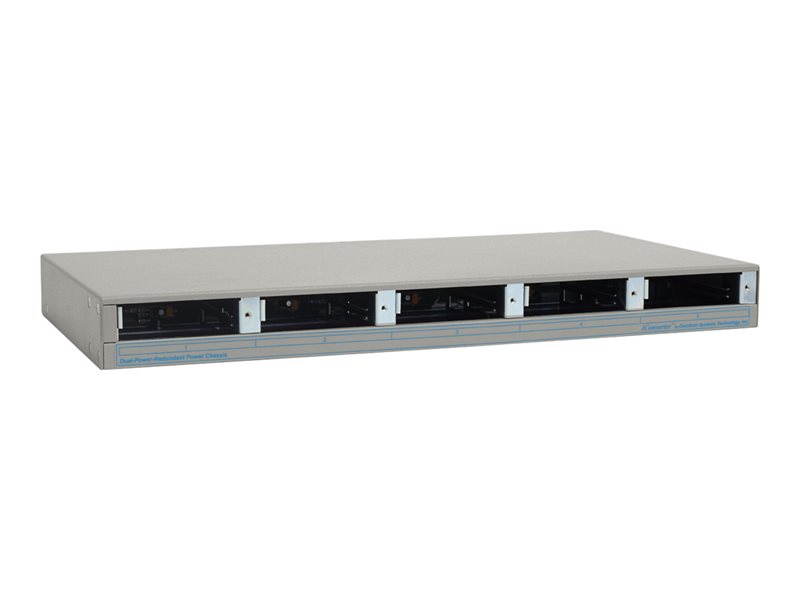

Modular expansion base
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | Rack-mountable |
| Remote Management Protocol | SNMP, Telnet |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 17.2 in x 9 in x 1.8 in |
| Weight | 8.6 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Form Factor | Rack-mountable |
| Installed Modules Qty (Max) | 0 (5) |
| Expansion / Connectivity | |
| Expansion Slots | 5 (total) / 5 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 350,000 hours |
| Compliant Standards | FCC Class B certified, UL |
| Networking | |
| Remote Management Protocol | SNMP, Telnet |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 9 in |
| Height | 1.8 in |
| Weight | 8.6 lbs |
